284516-4

Conn Wire to Board HDR 4POS 3.5mm Solder ST Thru-Hole

4 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 4POS VERT 3.5MM

艾睿:

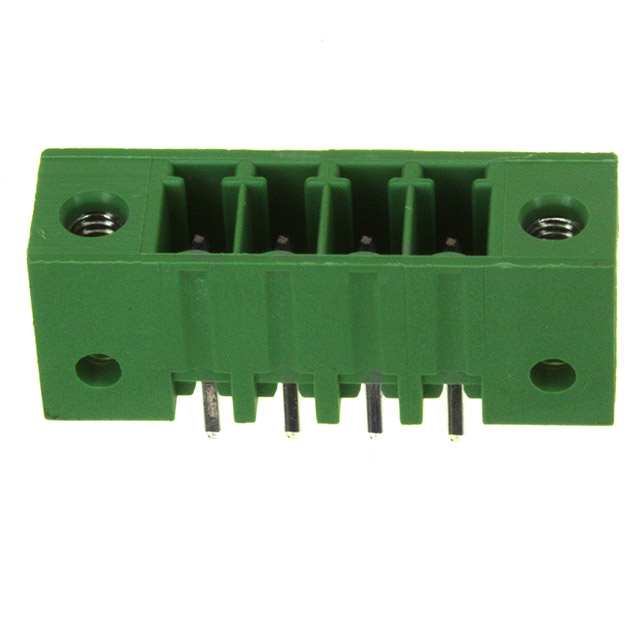

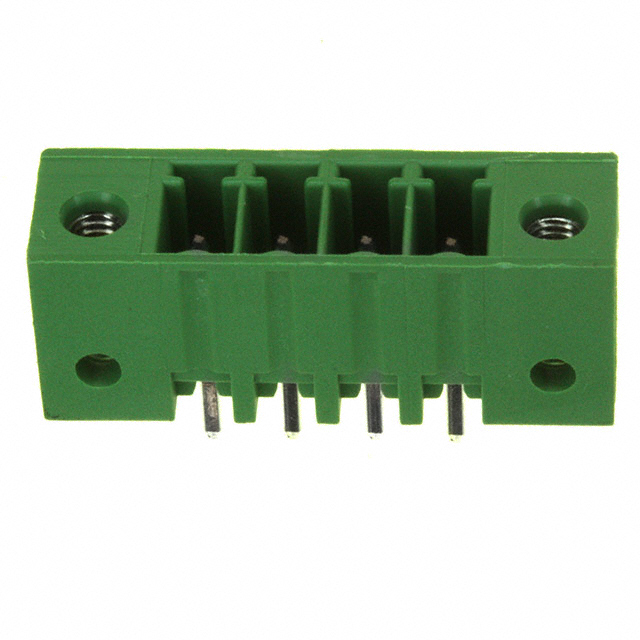

Use this wire to board 284516-4 header connector from TE Connectivity where IDC ribbon cables are used. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. It has a maximum voltage rating of 300 VAC. This is a 1-row connector. It has a header type gender. Its pitch is 3.5 mm. This device has a maximum current rating of 11 A/contact. It uses the solder termination method. 284516-4 is housed in green polyamide 6/6. This product is 10.5 mm long, 9.2 mm tall and 7.2 mm deep.

安富利:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST Thru-Hole

Verical:
Conn Wire to Board HDR 4 POS 3.5mm Solder ST Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  284516-4  4P TERMIBLOK HDR DIR C VITI New

MASTER:
TERMINAL BLOCK, HEADER ASSEMBLY STRAIGHT, 3.5mm PITCH WITH THREADED FLANGE

Powell:
Eurostyle Terminal Blocks

Online Components:
4P TERMIBLOK HDR DIR C VITI

Electro Sonic:
4P TERMIBLOK HDR DIR C VITI
