282815-3

TE Connectivity TERMI-BLOK 5.08mm 直角开口端端子块管座TERMI-BLOK 系列开口端印刷电路板直角安装端子块管座具有 5.08mm 中心线和联锁功能。 这些 5.08mm 印刷电路板端子块管座由绿色聚酰胺 6.6 GF 制成，具有镀锡磷青铜触点。### 认可UL 编号 E 60677，CSA 文件编号 007189A### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块技术参数 --- 额定电流 | 12A 电压额定值 | 250V 交流 导线接受范围 | 0.3 至 2.5mm（实心） 外壳 | 聚酰胺 6//6，UL94 V-0 级 触点材料 | 螺旋夹 - 镀镍黄铜 管座 - 镀锡黄铜

TERMI-BLOK 5.08mm 直角开口端端子块管座

TERMI-BLOK 系列开口端印刷电路板直角安装端子块管座具有 5.08mm 中心线和联锁功能。 这些 5.08mm 印刷电路板端子块管座由绿色聚酰胺 6.6 GF 制成，具有镀锡磷青铜触点。

### 认可

UL 编号 E 60677，CSA 文件编号 007189A

### TE Connectivity TERMI-BLOK 5.08mm 两件式端子块

立创商城:
板端/插座-开口 5.08mm 排数:1 每排P数:3 弯针

得捷:
TERM BLOCK HDR 3POS 90DEG 5.08MM

欧时:
TE Connectivity PCB 接线端子块 Buchanan 系列 3路 5.08mm节距 1排 直角 282815-3, 焊接端接, 15A, 通孔

艾睿:

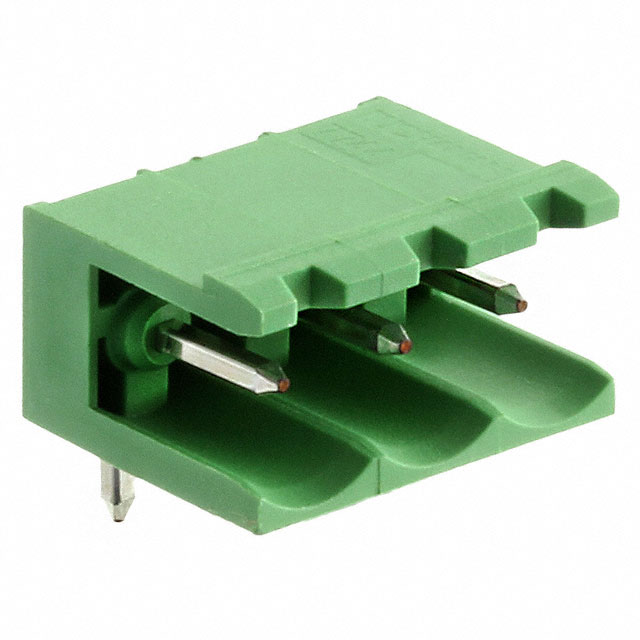

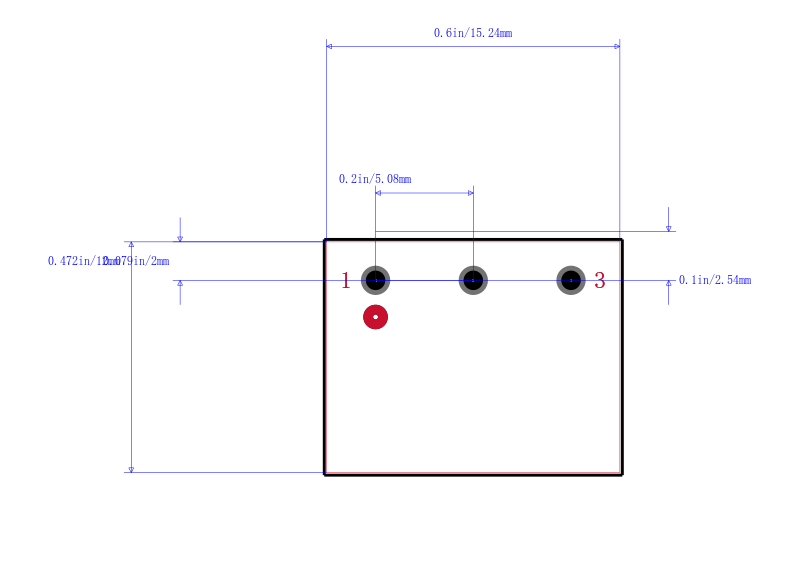

Look no further than the shrouded 282815-3 header connector from TE Connectivity, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 3 contacts that are made out of phosphor bronze and plated with tin. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. Its pitch is 5.08 mm. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 15 A/contact. This product is 15.24 mm long, 8.35 mm tall and 12 mm deep. It uses the solder termination method. 282815-3 is housed in green polyamide 6/6.

Allied Electronics:
Buchanan; 3 way horizontal header; 5.08mm pitch

安富利:
Conn Shrouded Header HDR 3 POS 5.08mm Solder RA Thru-Hole

Verical:
Conn Shrouded Header 2 Sides HDR 3 POS 5.08mm Solder RA Thru-Hole

Newark:
# AMP - TE CONNECTIVITY  282815-3  TERMI-BLOK HEADER,ASSY90 3P.5 New

MASTER:
Conn Shrouded Header 2 Sides HDR 3 POS 5.08mm Solder RA Thru-Hole

Powell:
Terminal Block Connectors

Online Components:
TERMI-BLOK HEADER,ASSY90 3P.5

Electro Sonic:
TERMI-BLOK HEADER,ASSY90 3P.5
