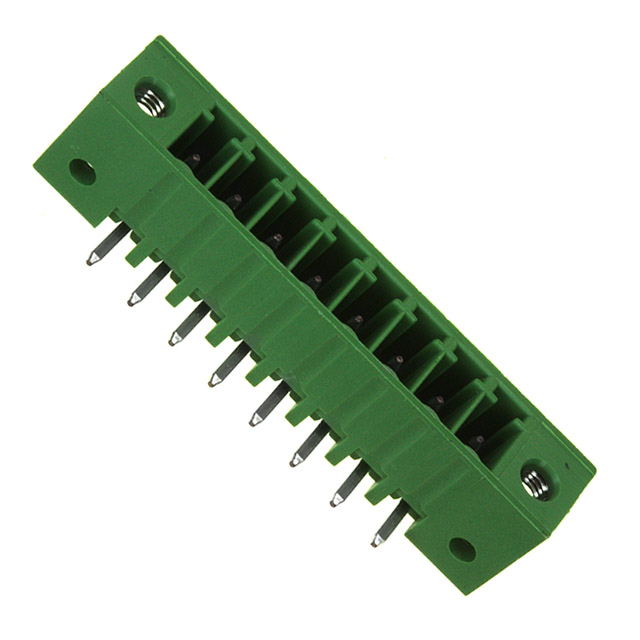

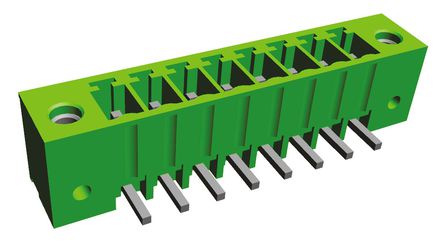

284539-8

TE Connectivity TERMI-BLOK 3.5mm 直角闭端管座，带螺纹法兰TERMI-BLOK 3.5mm 直角安装闭端管座，带螺纹法兰和极化键接插槽。 这些 TERMI-BLOK 3.5mm 闭端印刷电路板管座端子块连接器由绿色聚酰胺 6.6 GF 制成### TE Connectivity TERMI-BLOK 3.5mm 两件式端子块

TERMI-BLOK 3.5mm 直角闭端管座，带螺纹法兰

TERMI-BLOK 3.5mm 直角安装闭端管座，带螺纹法兰和极化键接插槽。 这些 TERMI-BLOK 3.5mm 闭端印刷电路板管座端子块由绿色聚酰胺 6.6 GF 制成

### TE Connectivity TERMI-BLOK 3.5mm 两件式端子块

得捷:
TERM BLOCK HDR 8POS 90DEG 3.5MM

欧时:
8 POS TERMINAL-BLOCK

贸泽:
可插拔接线端子 8 POS TERMI-BLOK 900 W.S.F. 3

艾睿:
This wire to board 284539-8 header connector from TE Connectivity reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin. Its pitch is 3.5 mm. It has a maximum voltage rating of 300 VAC. It has a right angle body orientation. It has a header type gender. This is a 1-row connector. This device has a maximum current rating of 11 A/contact. It uses the solder termination method. This product is 24.5 mm long, 7.25 mm tall and 9.2 mm deep. 284539-8 is housed in green polyamide 6/6.

安富利:
Conn Wire to Board HDR 8 POS 3.5mm Solder RA Thru-Hole

Verical:
Conn Wire to Board HDR 8 POS 3.5mm Solder RA Thru-Hole

MASTER:
TERMINAL BLOCK, HEADER ASSEMBLY 90 DEG 3.5mm PITCH WITH THREADED FLANGE

Powell:
Eurostyle Terminal Blocks

Online Components:
8 POS TERMI-BLOK 900 W.S.F. 3,

Electro Sonic:
8 POS TERMI-BLOK 900 W.S.F. 3,
