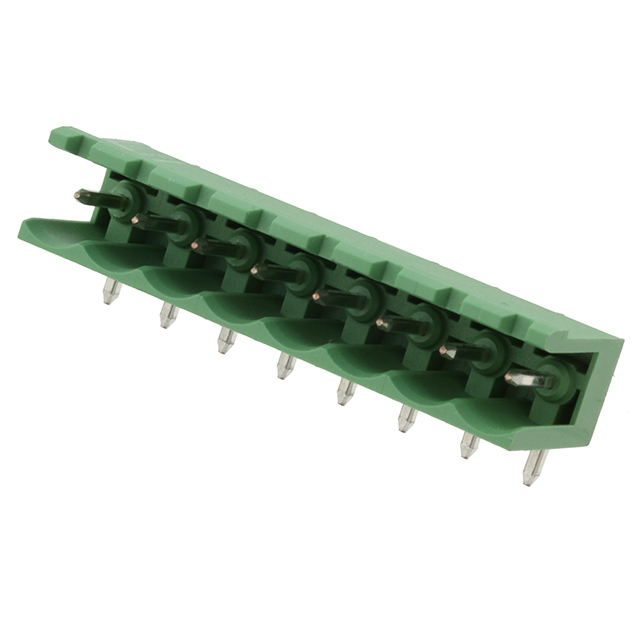

Conn Shrouded Header HDR 8POS 5mm Solder RA Thru-Hole
8 针位端子块 接头，公引脚，带罩（2 面） 0.197"（5.00mm） 90°，直角 - 通孔
得捷:
TERM BLOCK HDR 8POS 90DEG 5MM
艾睿:
TE Connectivity&s;s shrouded 282812-8 header connector is a great way to reduce safety concerns in projects where there is a possibility of accidentally shorting electronic components. This HDR connector&s;s 8 contacts that are made out of phosphor bronze and plated with tin. This is a 1-row connector. It has a right angle body orientation. It has a maximum voltage rating of 300 VAC. Its pitch is 5 mm. It has a header type gender. This device has a maximum current rating of 15 A/contact. This product is 40 mm long, 8.35 mm tall and 12 mm deep. 282812-8 is housed in green polyamide 6/6. It uses the solder termination method.
安富利:
Conn Shrouded Header HDR 8 POS 5mm Solder RA Thru-Hole
Verical:
Conn Shrouded Header 2 Sides M 8 POS 5mm Solder RA Side Entry Thru-Hole Box
MASTER:
TERMI-BLOK HEADER,ASSY 8P. 5
Powell:
Terminal Block Connectors
Online Components:
TERMI-BLOK HEADER,ASSY 8P. 5
Electro Sonic:
TERMI-BLOK HEADER,ASSY 8P. 5
