2862835概述

IB 直插式接线端子### Phoenix Contact 系统

Conn Terminal Block F 32 POS T DIN Rail


欧时:

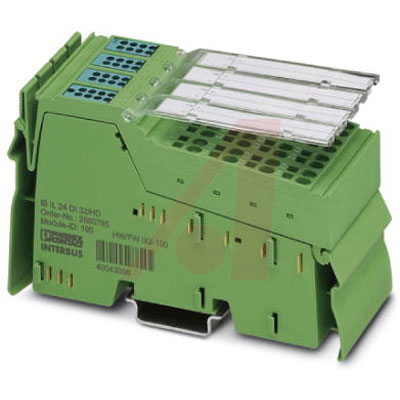

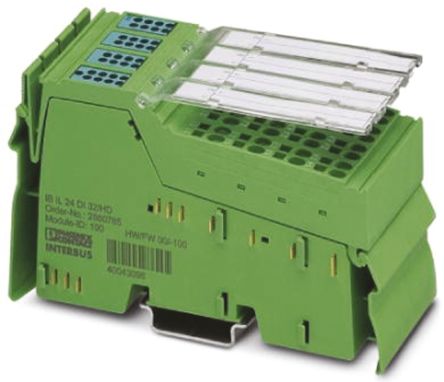

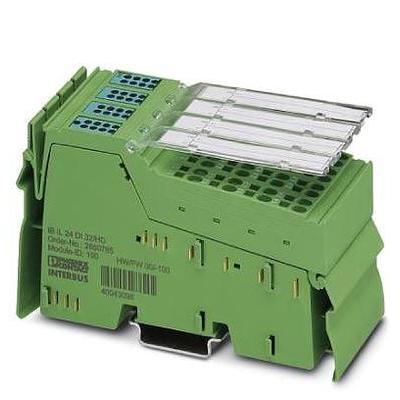

INLINE 32 CHANNEL 24V DIGITAL I/P MODULE


贸泽:
I/O Modules IB IL 24 DI 32/ HD-PAC


Allied Electronics:
Digital Input Module, Inline Modular, 32-Channel, 24VDC, Single-Wire, DIN Rail


Verical:
Inline, Digital input terminal, Digital inputs: 32, 24 V DC, connection method: 1-wire, transmission speed in the local bus: 500 kbps, degree of protection: IP20, including Inline connectors and marking fields


MASTER:
Inline - Digital input terminal - Digital inputs: 32 - 24 V DC - connection method: 1-wire - transmission speed in the local bus: 500 kbps - degree of protection: IP20 - including Inline connectors and marking fields


Online Components:
Conn Terminal Block F 32 POS T DIN Rail


Electro Sonic:
Inline - Digital input terminal - Digital inputs: 32 - 24 V DC - connection method: 1-wire - transmission speed ...


2862835中文资料参数规格
技术参数

触点数 32

排数 8

额定电压Max 24 VDC

工作电压Max 24 VDC

电源电压 24 VDC

封装参数

安装方式 Through Hole

封装 Module

外形尺寸

宽度 48.8 mm

高度 71.5 mm

封装 Module

物理参数

工作温度 -25℃ ~ 55℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538903000
