20J5K0

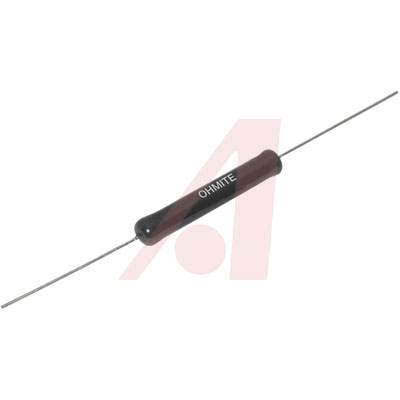

20J5K0图片1
20J5K0图片2
20J5K0图片3
20J5K0概述

绕线电阻 5kΩ ±5% 10W

**Features

**

* Rugged Vitreous Enamel Coating Withstands High Humidity and Temperature Cycling

* Durable Construction, Recommended for Industrial Applications Where Reliability Is Paramount

* All-Welded Construction

* Flame-Resistant Vitreous Enamel Coating

* 5% Tolerance


立创商城:
绕线电阻 5kΩ ±5% 10W


贸泽:
Wirewound Resistors - Through Hole 10watt 5K 10%


Allied Electronics:
10W 5K0 OHMS VITREOUS 5%


Chip1Stop:
Res Wirewound 5K Ohm 5% 10W 30ppm/ C Conformal AXL


Electro Sonic:
Res Wirewound 5K Ohm 5% 10W ±30ppm/°C Vitreous Enamel AXL


20J5K0中文资料参数规格
技术参数

额定电压DC 720 V

额定功率 10 W

产品系列 20

电阻 5 KΩ

阻值偏差 ±5 %

额定电压 720 V

封装参数

安装方式 Through Hole

封装 Vitreous Enamel

外形尺寸

长度 46.8 mm

宽度 46.8 mm

直径 10.0 mm

脚长度 38.1 mm

封装 Vitreous Enamel

物理参数

材质 Ceramic

工作温度 25℃ ~ 350℃

温度系数 ±30 ppm/℃

其他

产品生命周期 Active

包装方式 Bulk

最小包装 250

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

数据手册

在线购买20J5K0
型号: 20J5K0
制造商: Ohmite
描述:绕线电阻 5kΩ ±5% 10W
替代型号20J5K0
型号/品牌 代替类型 替代型号对比

20J5K0

Ohmite

当前型号

当前型号

20J5K0E

Ohmite

完全替代

20J5K0和20J5K0E的区别
