2SA1295

ALLEGRO SANKEN  2SA1295  单晶体管 双极, PNP, 230 V, 35 MHz, 200 W, 17 A, 50 hFE

The is a silicon PNP Epitaxial Planar Transistor for audio and general purpose applications. LAPT Large Area Parallel Transistor line which use multiple thermally-coupled transistors in parallel. The result is composite transistors that maintain their excellent linear gain characteristics even at full output current and provide extended frequency response, typically to 40MHz. Best of all, however, is their extraordinary resistance to secondary breakdown. No other audio transistor can match Sanken for power handling at over 100V.

.

Complement to 2SC3264

.

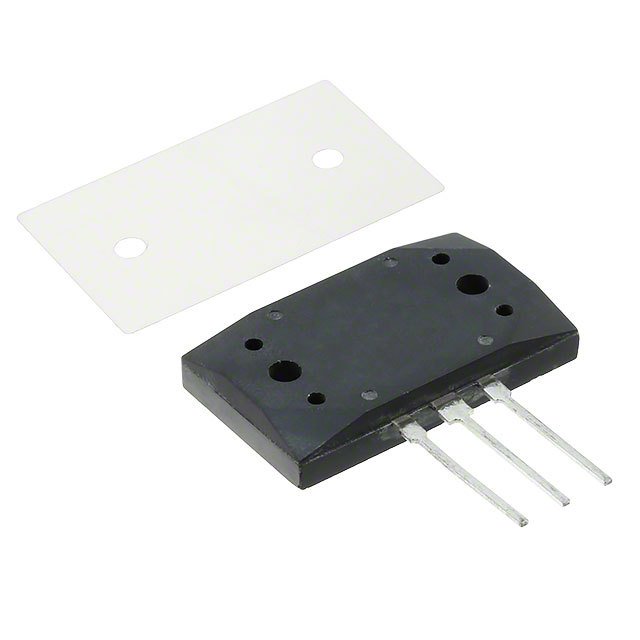

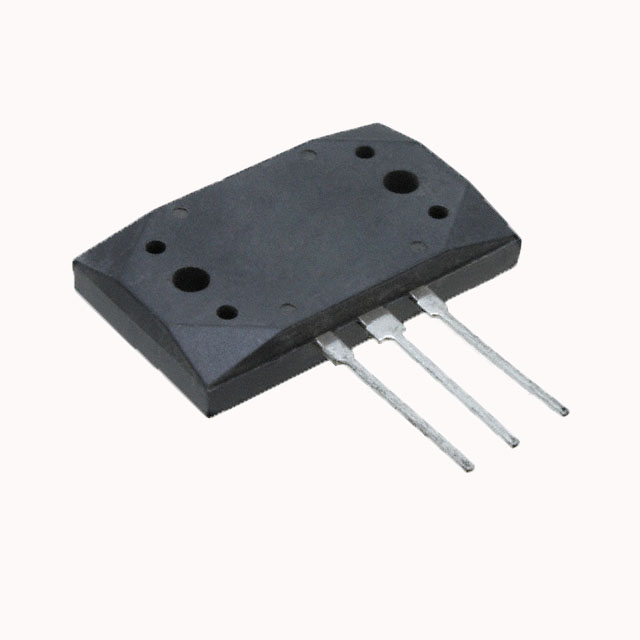

2-Screw Mount Package
