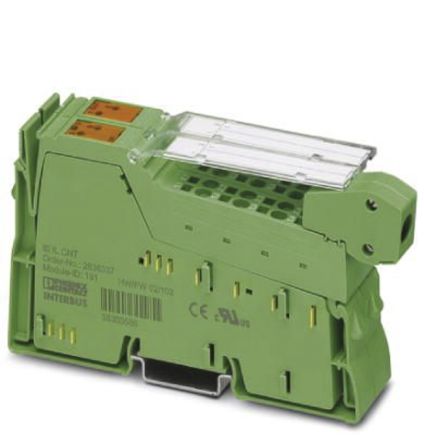

2861852图片1
2861852图片2
2861852图片3
2861852图片4

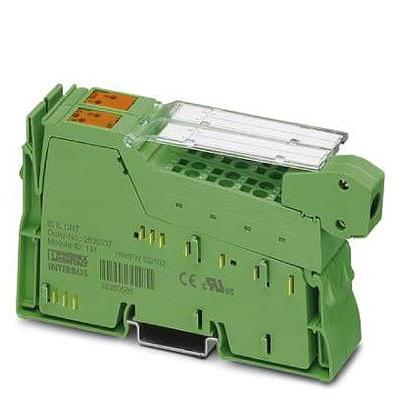

2861852图片5
2861852图片6
2861852图片7
2861852图片8
2861852概述

Phoenix Contact PLC 输入/输出模块 2861852, 500 mA, 19.2 → 30 V dc, 135 x 24.4 x 71.5 mm

Conn Terminal Block F 16 POS T DIN Rail


欧时:
PLC I/O Module 2861852


贸泽:
I/O Modules IB IL CNT-PAC


Verical:
Inline Analog Input Terminal F 16 POS T DIN Rail


MASTER:
Inline counter terminal block - complete with accessories connectors and labeling fields - 1 counter input - 1 control input - 1 output - 24 V DC - 500 mA - 3-wire connection method


Online Components:
Conn Terminal Block F 16 POS T DIN Rail


Electro Sonic:
Inline counter terminal block - complete with accessories connectors and labeling fields - 1 counter input - 1 control input ...


2861852中文资料参数规格
技术参数

触点数 16

排数 4

输出接口数 1

输出电流 500 mA

输入数 2

额定电压Max 24 VDC

工作电压Max 24 VDC

封装参数

安装方式 DIN Rail

封装 Module

外形尺寸

长度 135 mm

宽度 24.4 mm

高度 71.5 mm

封装 Module

物理参数

工作温度 -25℃ ~ 55℃

其他

产品生命周期 Active

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8538903000

数据手册

在线购买2861852
型号: 2861852
描述:Phoenix Contact PLC 输入/输出模块 2861852, 500 mA, 19.2 → 30 V dc, 135 x 24.4 x 71.5 mm
