0603 格式 RC 系列 7in. 卷装（30kΩ 至 910kΩ）0603 格式表面安装卷装，1% 片式电阻器 Power rating at 70°C | 0.1W ---|--- Resistance tolerance | ± 1% Temp. coefficient | ± 200 ppm/°C 1Ω ≤ R ≤10Ω ± 100 ppm/°C 10Ω Operating temp. Range | -55°C → 155°C Operating voltage | 50V Max Jumper chip maximum resistance | Current rating at 70°C | 1A Dimensions LxWxT | 1.6 x 0.8 x 0.45 mm ### 厚膜 - 0402/0603

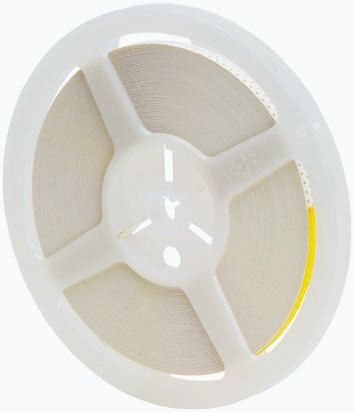

0603 格式 RC 系列 7in. 卷装（30kΩ 至 910kΩ）

0603 格式表面安装卷装，1% 片式器

Power rating at 70°C | 0.1W

---|---

Resistance tolerance | ± 1%

Temp. coefficient | ± 200 ppm/°C 1Ω ≤ R ≤10Ω

± 100 ppm/°C 10Ω < R ≤ 10MΩ

Operating temp. Range | -55°C → 155°C

Operating voltage | 50V Max

Jumper chip maximum resistance | <50 mΩ

Current rating at 70°C | 1A

Dimensions LxWxT | 1.6 x 0.8 x 0.45 mm
