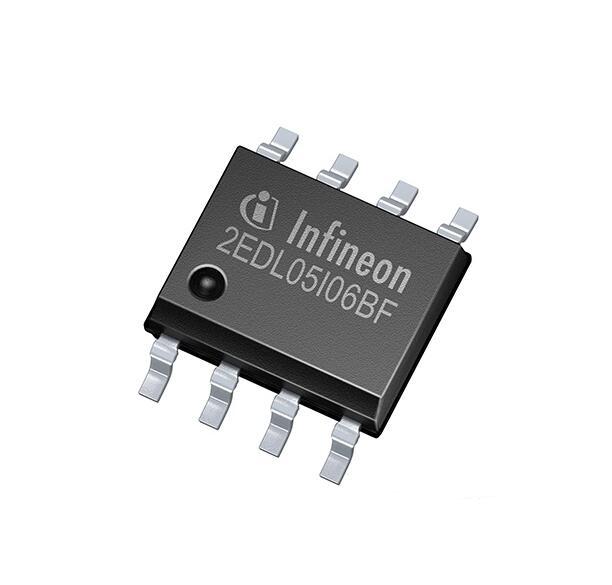

2EDL05I06BF

EiceDRIVER™ Compact - Optimized 600V half bridge gate driver IC with LS-SOI technology to control IGBTs

Summary of Features:

.

Individual control circuits for both outputs

.

Filtered detection of under voltage supply

.

All inputs clamped by diodes

.

Off line gate clamping function

.

Asymmetric undervoltage lockout thresholds for high side and low side

.

Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology

.

Ultra fast bootstrap diode

Benefits:

.

Space saving package

.

Improved energy efficiency
