2TL1-72

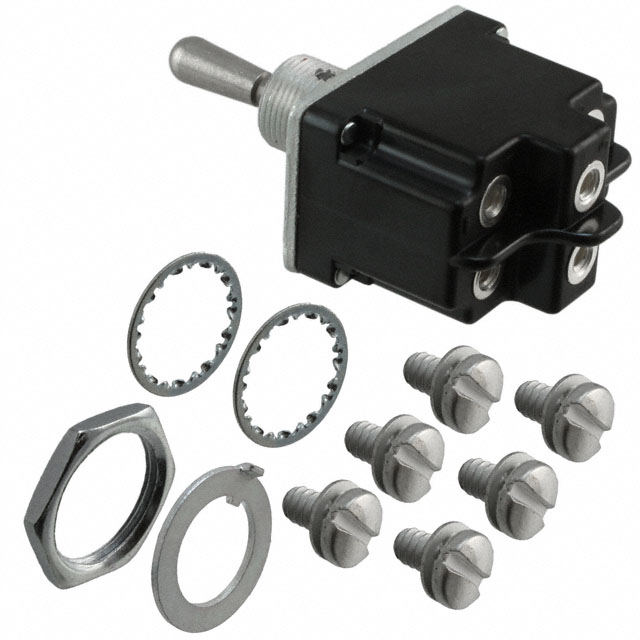

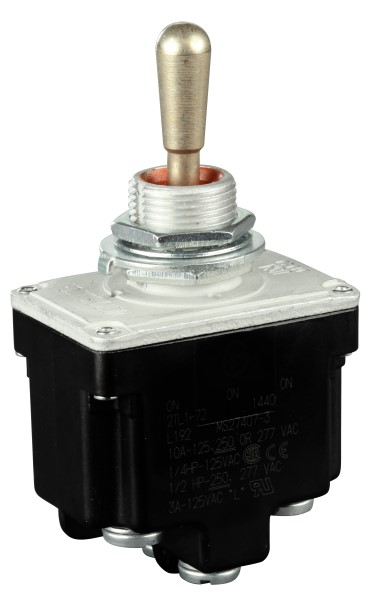

Switch Toggle N.O./N.C. DPDT Round Lever Screw 10A 277VAC 372.85VA Panel Mount with Threads

Toggle Switch from comes with 2 and 3 position function which offers both maintained and momentary toggle action. It has high strength and comes with environment-proof sealing and silver cadmium oxide contacts. The switching chambers of this DPDT toggle switch are completely sealed, while its step-design case offers an extra space between the terminals to help prevent shorting. It also comes with a standard lever, screw termination and ON ON ON switch configuration. The Pull-to-Unlock levers of Honeywell 2TL1-72 Switch helps prevent accidental operation.

Toggle Switches are devices that are manually actuated by means of a projecting lever, such as a mechanical lever, handle or by a rocking mechanism. These electrical switches are available in many different styles and sizes. Honeywell Switch 2TL1-72 is temperature-resistant and is often used in various applications such as industrial machinery, military and commercial aviation, construction equipment, test instruments, agricultural machinery, process control, and medical instrumentation.

Product Highlights

Environment-proof sealing

Completely sealed switching chamber

1, 2, and 4 pole circuitry

Standard and pull-to-unlock levers

Step-design case provides added space between terminals to help prevent shorting

2 and 3 position, maintained and momentary toggle action

Silver cadmium oxide contacts

Temperature-resistant

Temperature range: -85 °F to 160 °F

Qualified to MIL-DTL-3950

UL recognized, CSA certified

CE approved

Potential Applications:

Industrial machinery and equipment

Military and commercial aviation

Construction equipment

Test instruments

Agricultural machinery

Process control

Medical instrumentation
