Power Relay 24VAC 30A SPDT 63.5mm 63.5mm 55.88mm

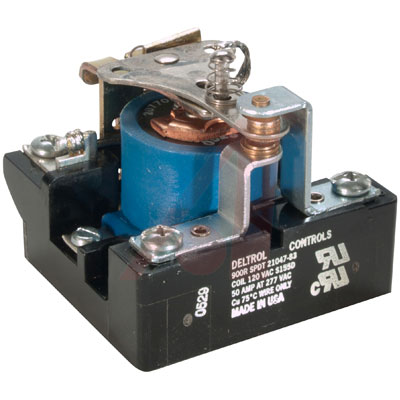

900 Series Relay: 30 and 50 Amp Heavy Duty Power Relay
Features:
* Up to 30-50 Amp loads see data sheet
* Class F coil insulation system for 155°C total temperature
* Coil molded in Polyester for environmental protection
* Rugged construction rivets terminals to base
* 900, 900D, and 900E are UL and cUL listed
* 900-1C, 900Q, and 900R are UL and cUR recognized
Models:
* 900: Fast-acting 30 Amp relay
* 900-1C: 900 with addition of SPDT auxiliary snap switch rated @10 Amp, 1⁄4 Hp
* 900Q: Same as 900 with .250" QC termination
* 900D: Same as 900 with addition of blowout magnets for DC loads
* 900E: Same as 900 with 50 Amp rating and box lug termination
* 900R: Same as 900 with 50 Amp rating and standard screw terminals
Typical Applications:
* Control Panel switching
* Motor Control
* Spa Controls
