264-354

接线端子, DIN导轨安装, 中心, 蓝色, 4 路, 28 AWG, 12 AWG, 2.5 mm², 夹式, 20 A

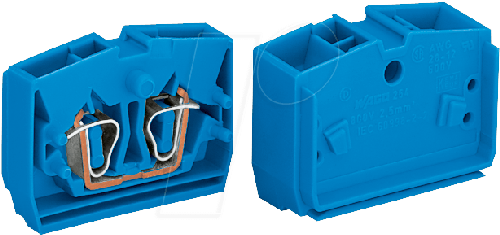

The from Wago is a blue colour 4-conductor centre terminal block with fixing flange. It has four connection points, one potential and one level. This terminal block has ABS, BV, CCA, CSA, DNV GL, KEMA, KR and LR approvals.

.

Required between end plate and end terminal block for terminal strips

.

800V rated voltage III/3, 8KV rated impulse voltage III/3 and 24A rated current

.

CAGE CLAMP connection technology

.

Connectable conductor material is copper, conductor cross-section of 12AWG THHN, THWN

.

0.08mm² to 2.5mm² 28AWG to 12AWG solid conductors tool operated termination

.

0.08mm² to 2.5mm² 28AWG to 12AWG fine stranded tool operated termination

.

Strip length of 8mm to 9mm 0.31inch to 0.35inch

.

Front entry wiring and horizontal design

.

0.112MJ fire load and 6.369g weight

.

Dimension is 10mm 0.394inch x 22.1mm 0.87inch x 32mm 1.26inch W x H x D
