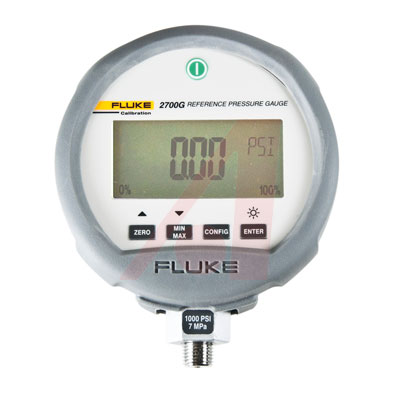

Reference Pressure Gauge; 5-1/2 Digit Display; -15 to 30psi; ISO17025; Note 1
Best-in-class performance to calibrate more gauges with less equipment.
The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications. It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches. In addition, it can be used as a check standard or to provide process measurements with data logging.
* Precision pressure measurement from 100 kPa 15 psi to 70 MPa 10,000 psi
* Accuracy to 0.02% of full scale
* Easy-to-use, rugged construction for reliable performance
* Combine with the 700PTPK or 700HTPK pump kits for a complete portable pressure testing solution for up to 4 MPa 600 psi
* Combine with the P5510, P5513, P5514, or P5515 Comparison Test Pumps for a complete bench top pressure calibration solution"
Each unit includes: Manual On Cd-Rom In 14 Languages, Calibration Certificate Showing Traceability, 1/4 Npt Female To 1/4 Bsp Male Adapter,
1/4 Npt Female To M20X1.5 Adapter, Universal Ac Power Supply, Usb Communication Cable.
Battery Life 75 Hours
Brand/Series 2700G Series
Burst Pressure 90 psi
Connection 1/4 in. NPT Male
Dimensions 5.0 x 4.5 x 1.5 in.
Display 5-1/2 Digits, 20-Segment Bar Graph
Media Type Note 1
Power Three AA Alkaline Batteries
Pressure Range -15 to 30 psi.
Series 2700G Series
Standards ISO 17025 Accredited Calibration
Type Pressure
