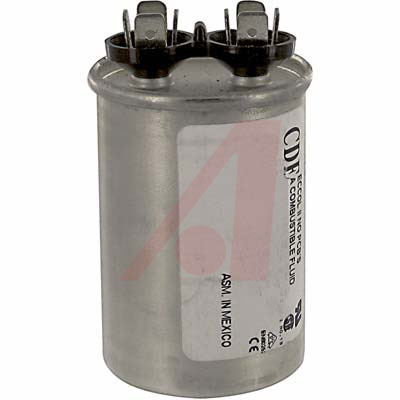

21FD3725

Cap Film 25uF 10% 370VAC Qc Term

Metallized polypropylene film dielectric capacitors offer a new option for AC applications. All devices have metal cases and four prong quick disconnect terminals.

.

These capacitors pack the same capacitance and voltage capabilities of a conventional paper capacitor into a smaller case of considerably lighter weight. In addition, these parts have extremely low dissipation factors. They offer high reliability and long life and meet EIA Standard RS-456 characteristic “E”. Allow 1⁄2" clearance above the terminals on fluid filled capacitors for interrupter operation.

**Specifications **

* Capacitance Range: 1 to 80 μF

* Tolerance: ±10%

* Voltage Range: 330 VAC, 370 VAC, 440 VAC

* Operating Temperature: –40°C to 70°C

**Features**

* Internal Protector

* Environmentally Safe

* Long Life

* Double Rolled Seams

* Light Weight

* Small Size

* High Reliability

**Applications**

* Lighting

* Motors

* Power Factor Correction

* Phase Shifting

* Air Conditioning

* Refrigeration
