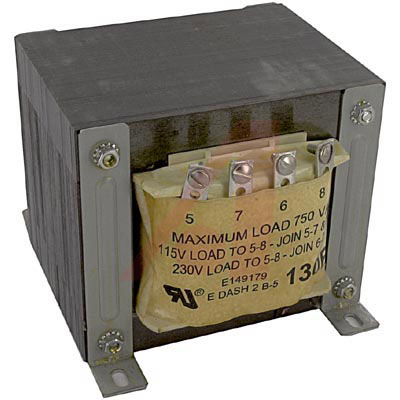

Transformer, Isolation, Step-up/down or straight, 115/230V, 50/60Hz, 750VA, screw
Our 23V600 Series can be used as a Step-Up, Step-Down, or Straight Transformer. Primary 115/230 VAC or 230/460 VAC, 50/60 Hz. Secondary 115/230 VAC. Lamination Grounded Static Shield 0.005 inches thick. Solder/Screw Terminals.
**Features:**
* Core, Case and Electrostatic Shield Connected to Ground
Allied Electronics:
Transformer, Isolation, Step-up/down or straight, 115/230V, 50/60HZ, 750VA, screw
额定功率 750 VA
Brand/Series 23V Series
Configuration Bobbin
Dimensions 5-1/4" W x 4-7/16" H x 6-1/4" D
Frequency 50/60 Hz
Mounting Hole Size 4-3/8, 4-15/16 "
Mounting Type Panel Mount
Number of Outlets 1
Phase 1
Power Rating 750 VA
Standards UL
Termination Screw Terminals
Type Isolation
Voltage, Primary 115/230 VAC
Voltage, Secondary 115/230 VAC
Weight 24.5 lbs.
RoHS标准 Non-Compliant
