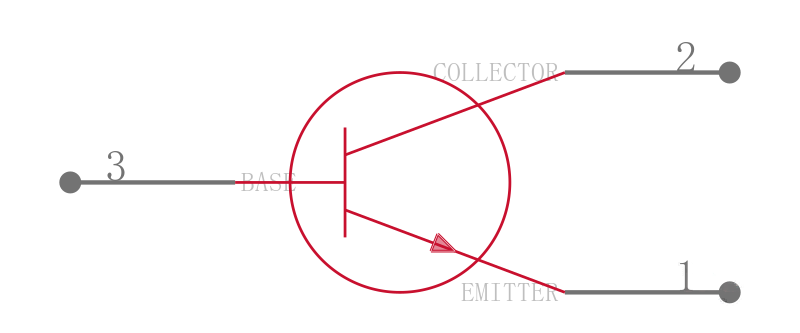

2SA970

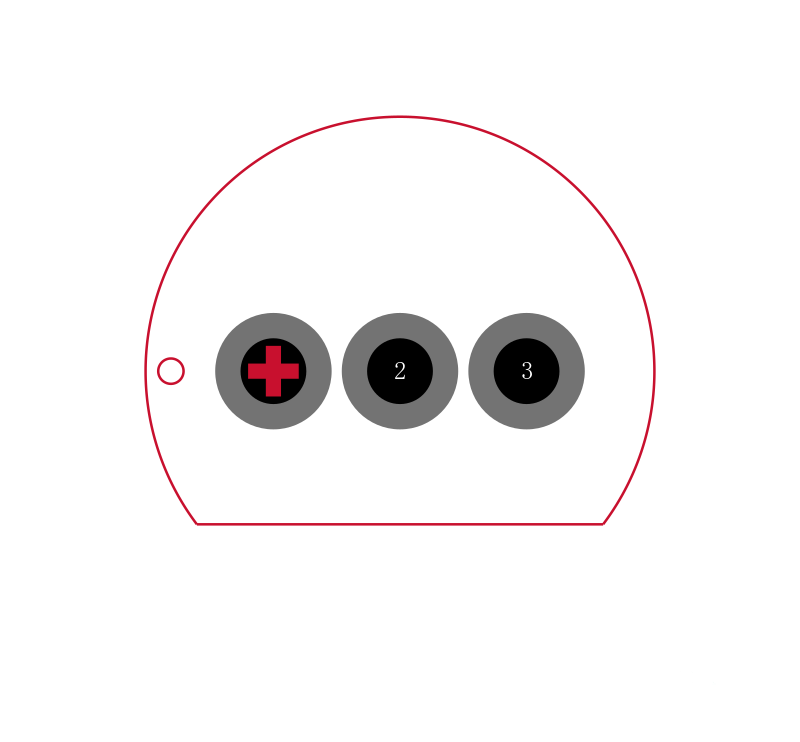

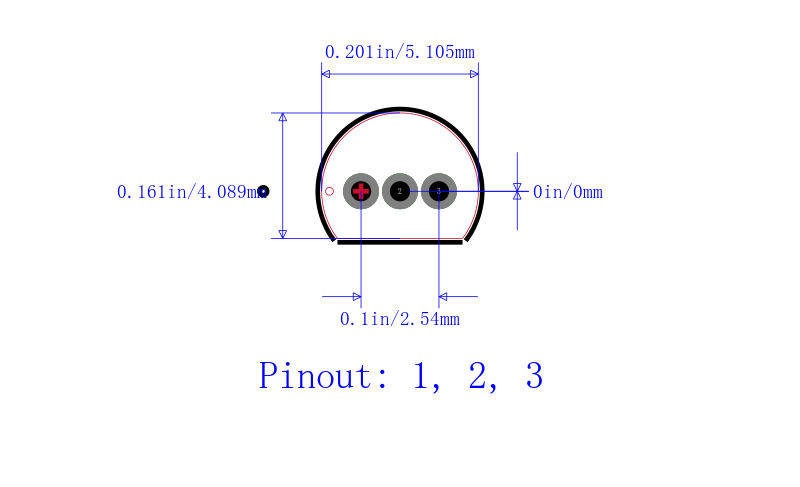

TO-92 PNP 120V 0.1A

Low Noise Audio Amplifier Applications

•  Low noise : NF = 3dB typ. RG= 100 Ω, VCE= −6 V, IC= −100 μA,

   f = 1 kHz

  : NF = 0.5dB typ. RG= 1 kΩ, VCE= −6 V, IC= −100 μA,

   f = 1 kHz

•  High DC current gain: hFE= 200~700

•  High breakdown voltage: VCEO= −120 V

•  Low pulse noise. Low 1/f noise

Chip1Stop:
Trans GP BJT PNP 120V 0.1A 3-Pin TO-92
