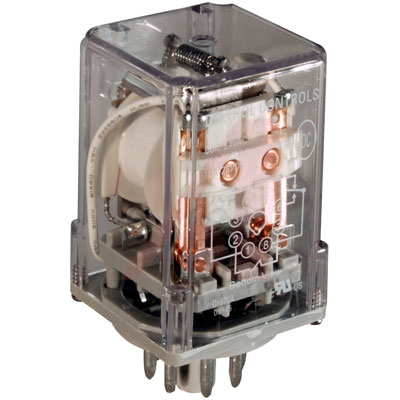

20116-81

Relay; General Purpose; 105; 3PDT; 10A; 12VDC; Octal Plug; 8, 11Pin; Plain Cover

105 Series: 5 and 10 Amp plug-in octal base General Purpose Relay

Features:

* Up to 10 Amp loads see data sheet

* Thru 3PDT

* Class F coil insulation system for 155°C total temperature

* Coil molded in Polyester for environmental protection

* Unique armature stop maintains adjustment

* Gold Flash is standard on all contacts

Models:

* 105: Standard 8 or 11-pin socket termination

* 105A: Addition of indicator lamp

* 105G: Uses standard cover with Neoprene gasket

* 105T: Sensitive coil version of 105

Typical Applications:

* Common replacement relay for many types of existing equipment
