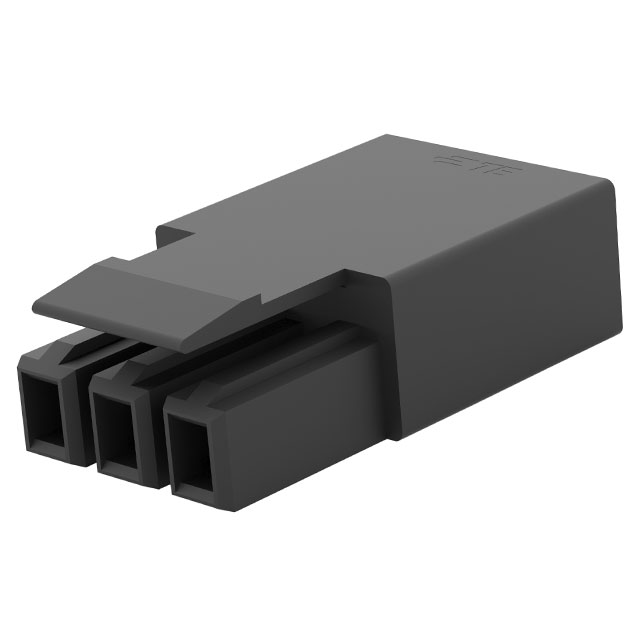

AMP FROM TE CONNECTIVITY 2834054-2 CONNECTOR, PLUG, 3POS, CABLE 新
** introduces the 3 position latched wire-to-wire connector. **This connector utilizes poke-in termination which supports easy field installation as no tools are required. The compact design makes this connector ideal for applications where space is limited. Suitable for indoor lighting applications, this connector comes in four colors, enabling ease of identification and assembly.
**Features:**
* Modular Technology enables flexibility in design
* Tool free, easy and fast installation with poke in contact feature
* Compact size design for space saving
* Color configurations enables easy identification
* Ground PIN with make-first break-last MFBL
* Support for hot plug UL2459 abnormal overload test
触点数 3
极性 Male
线规 16AWG ~ 22AWG
触点电镀 Tin
排数 1
易燃性等级 UL 94 V-0
针脚数 3
拔插次数 10
额定电流Max 9A/触头
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压Max 600 VAC
额定电压 600 V
长度 25 mm
宽度 14.3 mm
高度 7.5 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
工作温度 -40℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
