29.103

Conn; Term Blk; PCB; Tubular Screw; 3; 3.5mm; Top; 28-16AWG; 6A; 300V

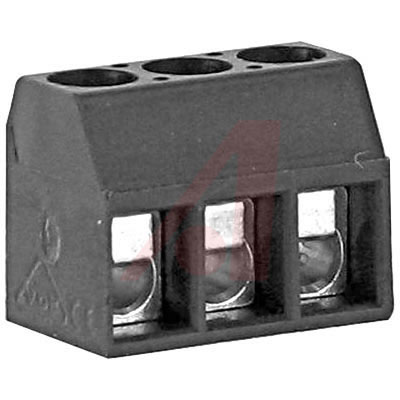

Screw Terminal Blocks, 45 ° Angle Version, 15 A Rated Current

Use for cost sensitive applications where infrequent wire terminations are expected. UL, CSA, IEC/VDE.

** AK555.** 3.5 mm 0.138" pin spacing, 6 A, 300 V, 28-16 AWG.6.5 mm 0.26" high, with wire protector. Subminiature design provides small footprint and the highest circuit density available. 0.9 mm 0.035" dia. round pins. ** Color:** Gray.

* Front, Top Wire Entry

* Up to 15 A, 300 V, 28-14 AWG

* Modular and Single Mold

* Standard Color: Gray
