General Purpose Relays - 3 to 15A, AC Coils, 13A, 240VAC, DPST, Model 166A
160 Series: 5 and 13 Amp General Purpose Plug-in Relay
Features:
* Up to 13 Amp loads see data sheet
* Thru 3PDT
* Class F coil insulation system for 155°C total temperature
* Coil molded in Polyester for environmental protection
* Unique armature stop maintains adjustment
* Fine wire gauge coils are skeined for integrity
* Gold Flash is standard on all contacts
Models:
* 160: 5 Amp Open Frame
* 161: 13 Amp Open Frame

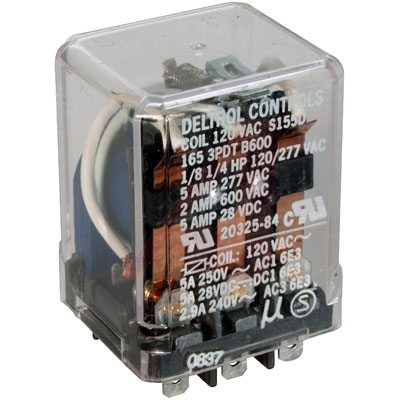

* 165: 5 Amp Covered Plug-in
* 165F: 5 Amp Flanged Cover w/ QC terminals
* 166: 13 Amp Covered Plug-in
* 166F: 13 Amp Flanged Cover w/ QC terminals
* 166E: Addition of Blowout Magnets
For higher DC ratings, other suffixes available; A- Indicator Lamp, P-Printed Circuit terminals,
TM- Top-mounted Cover
Typical Applications:
* Industrial Machine Control
* Energy Management Systems
* Control Panels
