2SA1162

Transistor Silicon PNP Epitaxial Type PCT process Audio Frequency General Purpose Amplifier Applications

Audio Frequency General Purpose Amplifier Applications

•  High voltage and high current: VCEO= −50 V, IC= −150 mA max

•  Excellent hFElinearity:  hFEIC= −0.1 mA/hFEIC= −2 mA

                                                                = 0.95 typ.

•  High hFE: hFE= 70~400

•  Low noise: NF = 1dB typ., 10dB max

•  Complementary to 2SC2712

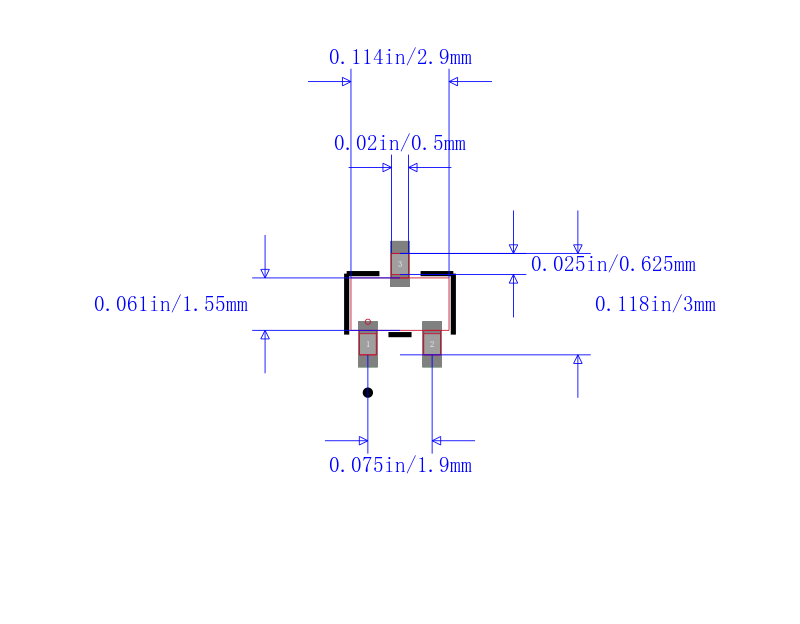

•  Small package
