ADC08DL500CIVV/NOPB

ADC08DL500CIVV/NOPB图片1
ADC08DL500CIVV/NOPB图片2
ADC08DL500CIVV/NOPB图片3
ADC08DL500CIVV/NOPB图片4
ADC08DL500CIVV/NOPB图片5
ADC08DL500CIVV/NOPB图片6
ADC08DL500CIVV/NOPB概述

模数转换器 - ADC Low Pwr 8B Dual 500MSPS ADC

8 Bit Analog to Digital Converter 2 Input 2 Folding Interpolating 144-LQFP 20x20


得捷:
IC ADC 8BIT FOLD INTERP 144LQFP


贸泽:
模数转换器 - ADC Low Pwr 8B Dual 500MSPS ADC


艾睿:
Dual Channel Dual ADC Folding/Interpolating 500Msps 8-bit LVDS 144-Pin LQFP Tray


安富利:
ADC Dual Folding/Interpolating 500Msps 8-bit LVDS 144-Pin LQFP Tray


Chip1Stop:
Dual ADC Folding/Interpolating 500Msps 8-bit LVDS 144-Pin LQFP Tray


罗切斯特:
Dual ADC Folding/Interpolating 500Msps 8-bit LVDS 144-Pin LQFP Tray


DeviceMart:
IC ADC 8BIT 500MSPS 144LQFP


Win Source:
IC ADC 8BIT 500MSPS 144LQFP


ADC08DL500CIVV/NOPB中文资料参数规格
技术参数

电路数 2

位数 8

耗散功率 1250 mW

采样率 500 Msps

模数转换数ADC 2

输入数 2

工作温度Max 70 ℃

工作温度Min -40 ℃

输入通道数 2

封装参数

安装方式 Surface Mount

引脚数 144

封装 LQFP-144

外形尺寸

高度 1.45 mm

封装 LQFP-144

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Not Recommended for New Designs

包装方式 Tray

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ADC08DL500CIVV/NOPB引脚图与封装图

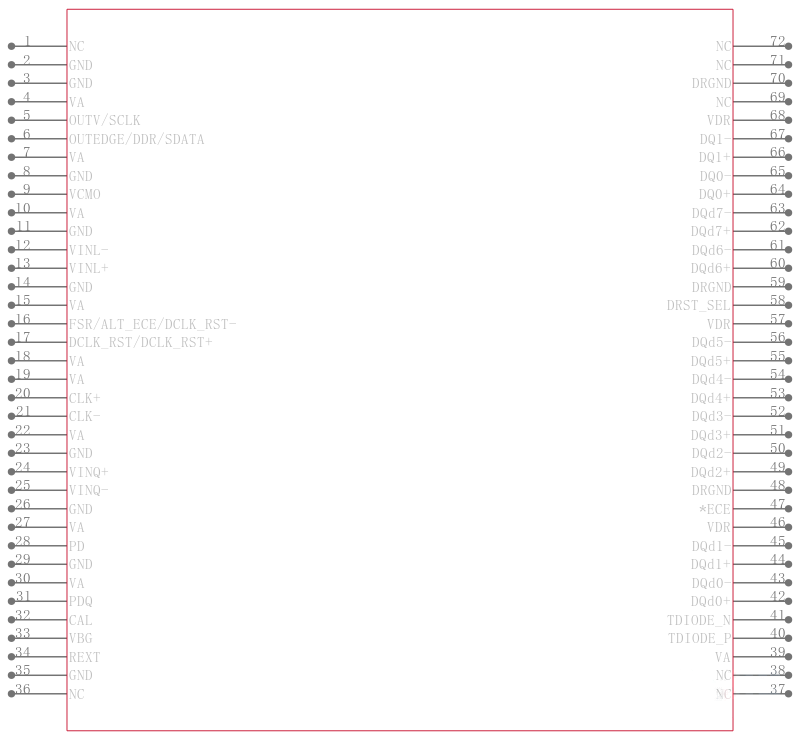

ADC08DL500CIVV/NOPB引脚图

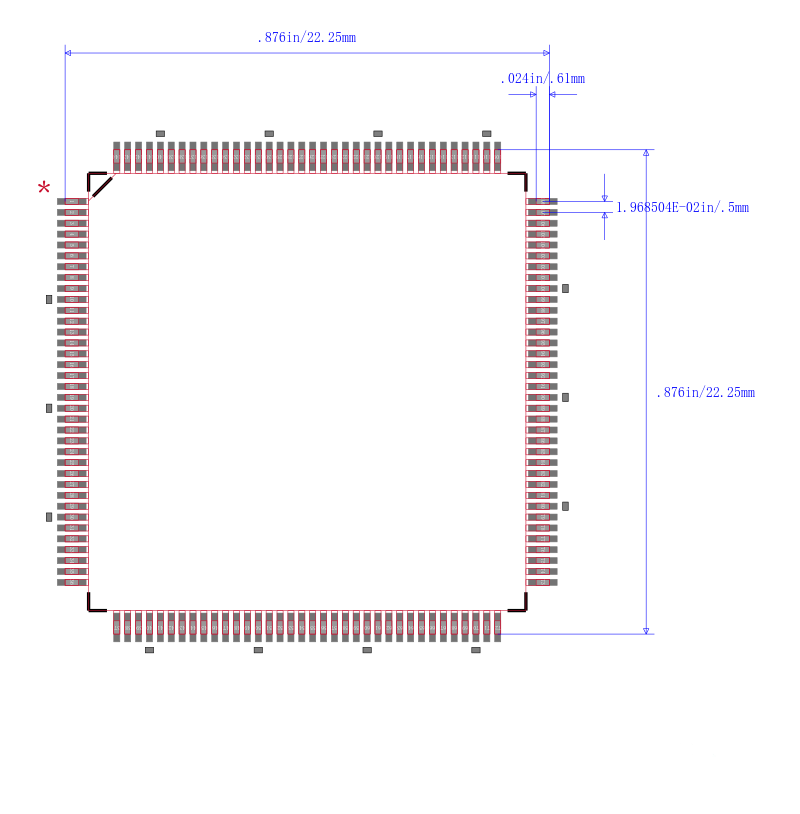

ADC08DL500CIVV/NOPB封装图

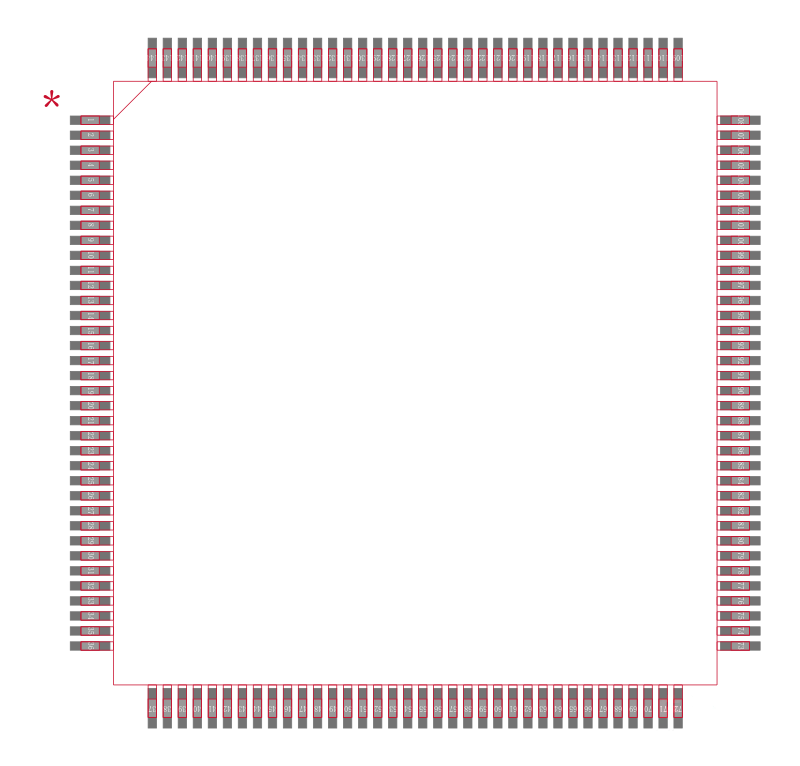

ADC08DL500CIVV/NOPB封装焊盘图
在线购买ADC08DL500CIVV/NOPB
型号: ADC08DL500CIVV/NOPB
制造商: TI 德州仪器
描述:模数转换器 - ADC Low Pwr 8B Dual 500MSPS ADC
