AD7841ASZ-REEL

八通道14位，并行输入，电压输出DAC Octal 14-Bit, Parallel Input, Voltage-Output DAC

Product Details

The AD7841 contains eight 14-bit, buffered voltage-output DACs on one monolithic chip. It has output voltages with a full-scale range of ±10 V from reference voltages of ±5 V. There are 3 separate differential references with buffered inputs; one for DACs A and B, one for DACs G and H and one for DACs C, D, E and F. The AD7841 accepts 14-bit parallel loaded data from the external bus into one of the input latches under the control of the WR, CS and DAC address pins, A0-A2. The DAC outputs are updated on reception of new data into the DAC registers. Each DAC output is buffered with a gain-of-two amplifier into which an external DAC offset voltage can be inserted via the DUTGND pins. The AD7841 is available in a 44-pin PQFP package.

### Features and Benefits

.

Eight 14-Bit DACs in One Package

.

Voltage Outputs

.

Offset Adjust for Each DAC Pair

.

Reference Range of ±5 V

.

Maximum Output Voltage Range of ±10 V

.

±15 V ± 10% Operation

.

Clear Function to User-Defined Voltage

.

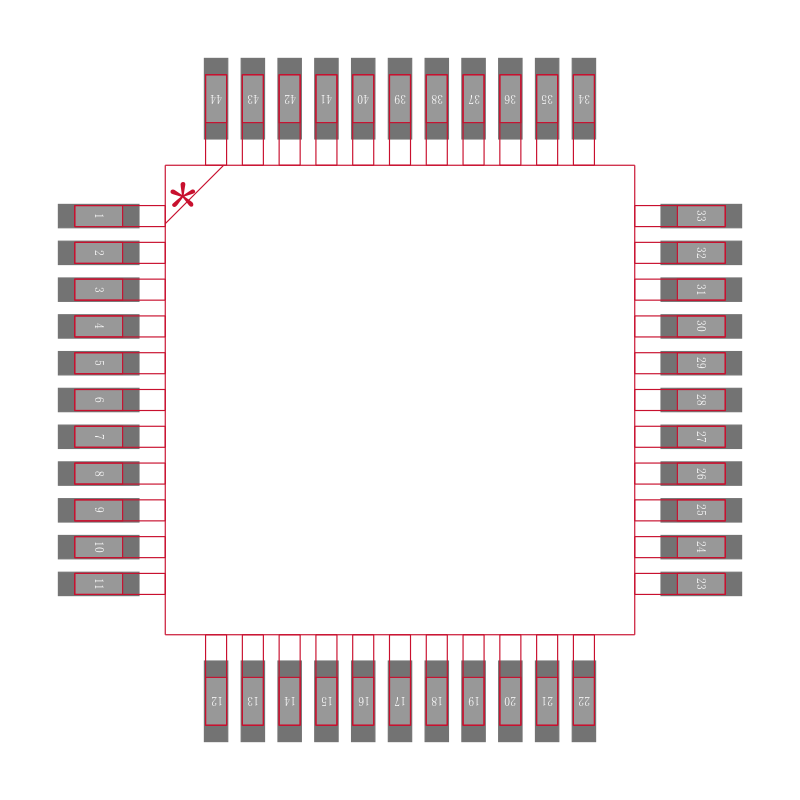

44-Lead MQFP Package
