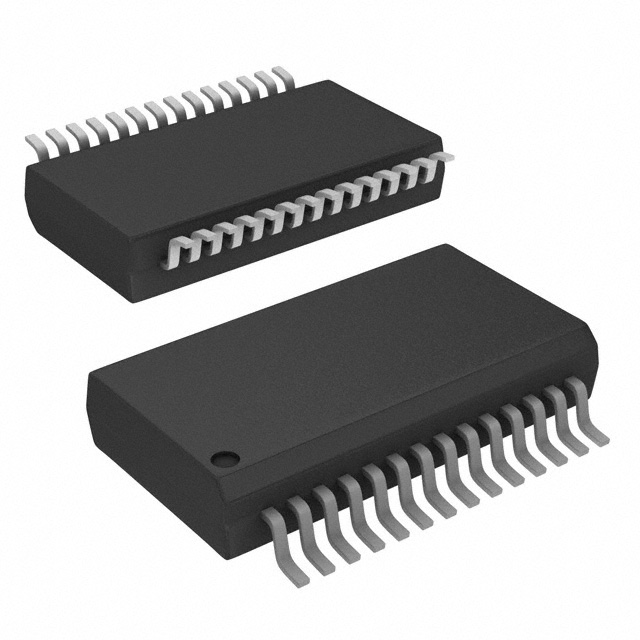

AD976ABRSZ

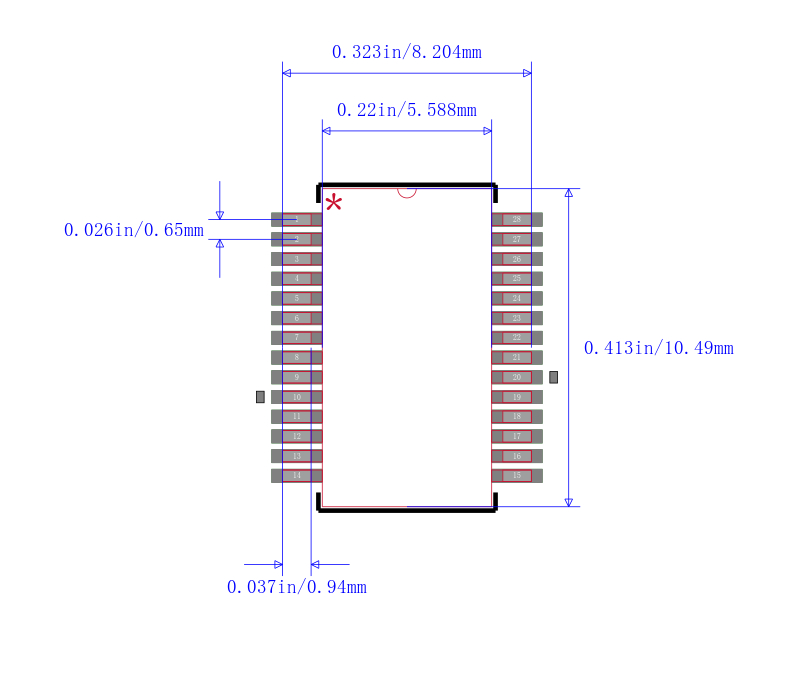

ANALOG DEVICES  AD976ABRSZ  模数转换器, 16 bit, 200 kSPS, 单, 4.75 V, 5.25 V, SSOP

The is a 16-bit BiCMOS high speed low power Analog-to-digital Converter ADC that operates from a single 5V supply. The part contains a successive approximation, switched capacitor ADC, an internal 2.5V reference and a high speed parallel interface. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10V. It is comprehensively tested for ac parameters such as SNR and THD as well as the more traditional parameters of offset, gain and linearity. It is fabricated on Analog Devices proprietary BiCMOS process, which has high performance bipolar devices along with CMOS transistors.

.

Single 5V supply operation

.

100mW Maximum power dissipation

.

High speed parallel interface

.

On-chip clock

.

Complete A/D solution
