16通道, 12位电压输出DAC, 14位增量模式 16-Channel, 12-Bit Voltage-Output DAC with 14-Bit Increment Mode
GENERAL DESCRIPTION
The AD5516 is a 16-channel, 12-bit voltage-output DAC. The selected DAC register is written to via the 3-wire serial interface. DAC selection is accomplished via address bits A3–A0. 14-bit resolution can be achieved by fine adjustment in Increment/Decrement Mode Mode 2.
FEATURES
High Integration: 16-Channel DAC in 12 mm 12 mmCSPBGA
14-Bit Resolution via Increment/Decrement Mode
Guaranteed Monotonic
Low Power, SPI®, QSPI™, MICROWIRE™, and DSP Compatible 3-Wire Serial Interface
Output Impedance 0.5
Output Voltage Range
±2.5 V AD5516-1
±5 V AD5516-2
±10 V AD5516-3
Asynchronous Reset Facility via RESET Pin
Asynchronous Power-Down Facility via PD Pin
Daisy-Chain Mode
Temperature Range: –40C to +85C
APPLICATIONS
Level Setting
Instrumentation
Automatic Test Equipment
Optical Networks
Industrial Control Systems
Data Acquisition
Low Cost I/O
电源电压DC 4.75V min
输出接口数 8
供电电流 13.0 mA
位数 12
耗散功率 243 mW
采样率 750 ksps
分辨率Bits 12.0
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 105 mW
数模转换数DAC 16
电源电压Max 13.2 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 74

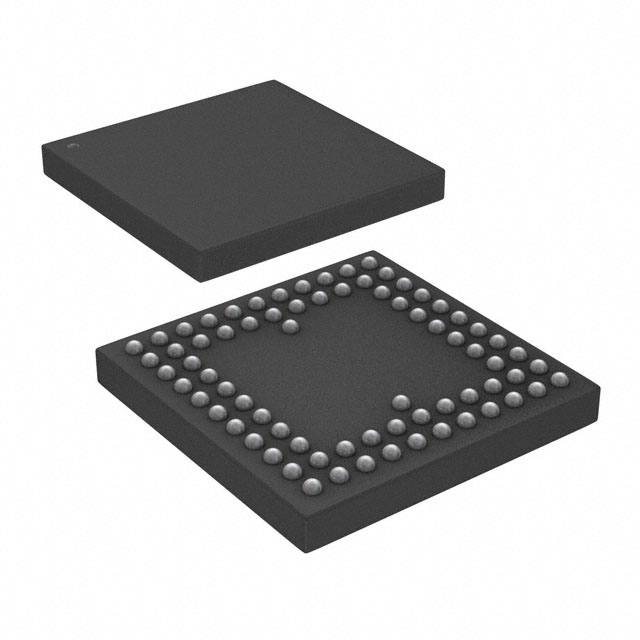

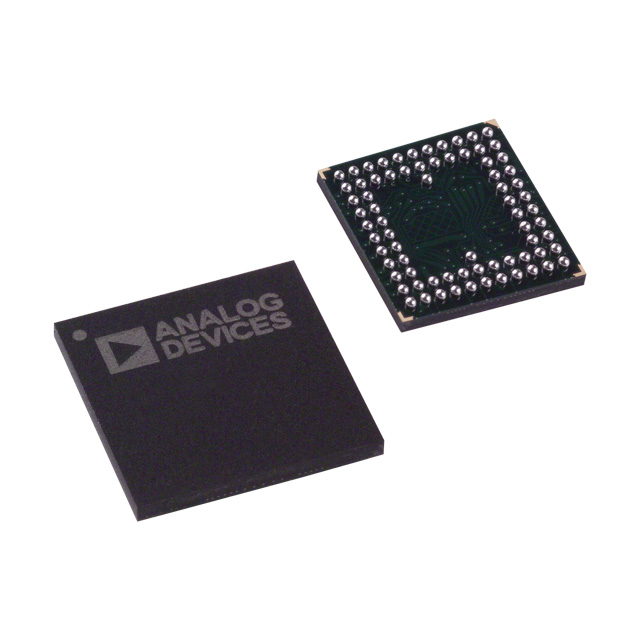

封装 BGA-74
高度 1.1 mm
封装 BGA-74
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 Non-Compliant
含铅标准 Contains Lead
军工级 No
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD5516ABC-3 ADI 亚德诺 | 当前型号 | 当前型号 |
AD5516ABCZ-3 亚德诺 | 类似代替 | AD5516ABC-3和AD5516ABCZ-3的区别 |
