ADS4129IRGZR

14位/ 12位， 160 / 250MSPS ，超低功耗ADC 14-/12-Bit, 160/250MSPS, Ultralow-Power ADC

DESCRIPON

The ADS412x/4x are a family of 12-bit/14-bit analog-to-digital converters ADCs with sampling rates up to 250MSPS. These devices use innovative design techniques to achieve high dynamic performance, while consuming extremely low power at 1.8V supply. The devices are well-suited for multi-carrier, wide bandwidth communications applications.

FEATURES

• Maximum Sample Rate: 250MSPS

• Ultralow Power with 1.8V Single Supply:

   – 201mW Total Power at 160MSPS

   – 265mW Total Power at 250MSPS

• High Dynamic Performance:

   – SNR: 70.6dBFS at 170MHz

   – SFDR: 84dBc at 170MHz

• Dynamic Power Scaling with Sample Rate

• Output Interface:

   – Double Data Rate DDR LVDS with Programmable Swing and Strength

   – Standard Swing: 350mV

   – Low Swing: 200mV

   – Default Strength: 100Ω Termination

   – 2x Strength: 50Ω Termination

   – 1.8V Parallel CMOS Interface Also Supported

• Programmable Gain up to 6dB for SNR/SFDR Trade-Off

• DC Offset Correction

• Supports Low Input Clock Amplitude Down To 200mVPP

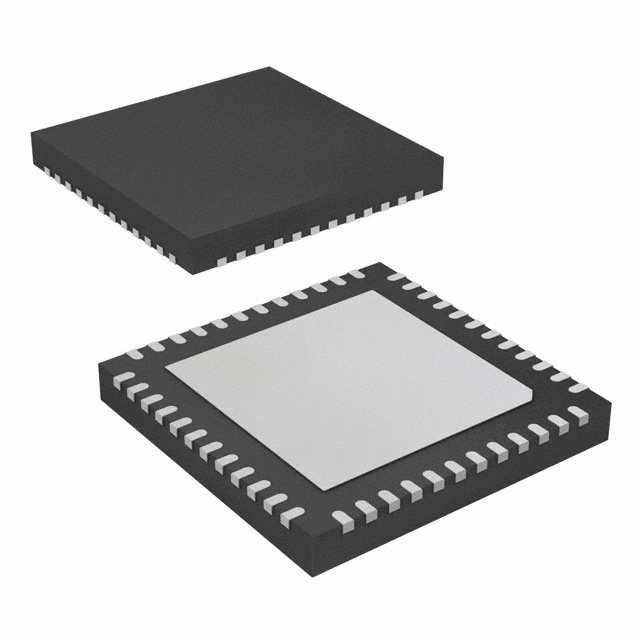

• Package: QFN-48 7mm × 7mm
