AD7626BCPZ-RL7

16位， 10 MSPS ， PulSAR系列ADC差分 16-Bit, 10 MSPS, PulSAR Differential ADC

Product Details

The AD7626 is a 16-bit, 10 MSPS, charge redistribution successive approximation register SAR based architecture analog-to-digital converter ADC. SAR architecture allows unmatched performance both in noise 91.5 dB SNR and in linearity ±0.45 LSB INL. The AD7626 contains a high speed, 16-bit sampling ADC, an internal conversion clock, and an internal buffered reference. On the CNV edge, it samples the voltage difference between the IN+ and IN− pins. The voltages on these pins swing in opposite phase between 0 V and REF. The 4.096 V reference voltage, REF, can be generated internally or applied externally.

All converted results are available on a single low voltage differential signaling LVDS self clocked or echoed clock serial interface, reducing external hardware connections.

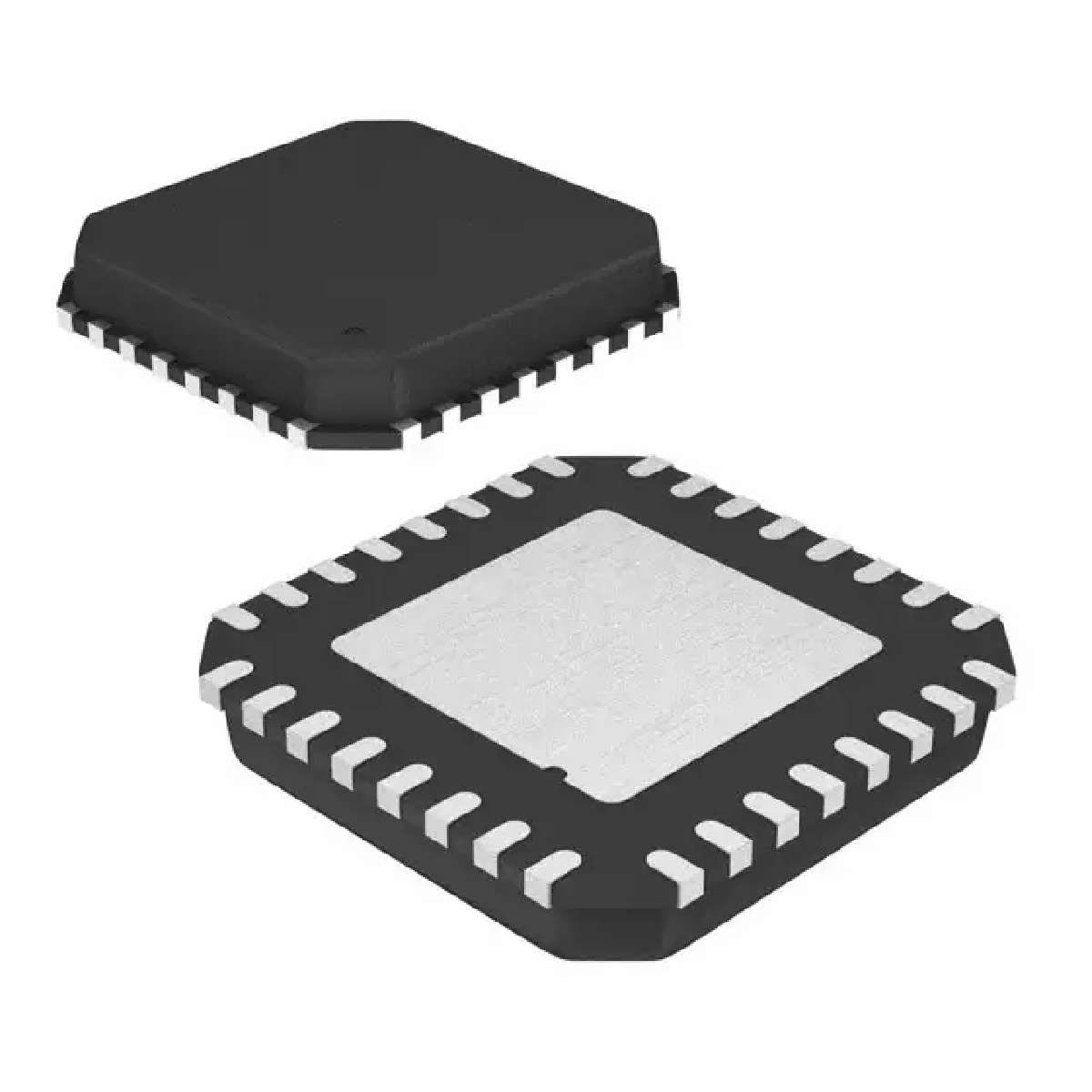

The AD7626 is housed in a 32-lead, 5 mm × 5 mm LFCSP with operation specified from −40°C to +85°C.

Applications

.

Digital imaging systems

– Digital X-ray

– Digital MRI

– CCD and IR cameras

.

High speed data acquisition

.

High dynamic range telecommunications receivers

.

Spectrum analysis

.

Test equipment

### Features and Benefits

.

Throughput: 10 MSPS

.

SNR: 91.5 dB

.

16-bit no missing codes

.

INL: ±0.45 LSB

.

DNL: ±0.35 LSB

.

Power dissipation: 136 mW

.

32-lead LFCSP 5 mm × 5 mm

.

SAR architecture

.

No latency/pipeline delay

.

16-bit resolution with no missing codes

.

Zero error: ±1 LSB

.

Differential input range: ±4.096 V

.

See data sheet for additional features
