具有 P8/P16 并行输出、内部时钟和内部基准的 16 位 2MSPS ADC 48-TQFP -40 to 85
The ADS8411 is a 16-bit, 2 MHz A/D converter with an internal 4.096-V reference. The device includes a 16-bit capacitor-based SAR A/D converter with inherent sample and hold. The ADS8411 offers a full 16-bit interface and an 8-bit option where data is read using two 8-bit read cycles.
The ADS8411 has a unipolar single-ended input. It is available in a 48-lead TQFP package and is characterized over the industrial 40°C to 85°C temperature range.
得捷:
IC ADC 16BIT SAR 48TQFP
立创商城:
ADS8411IBPFBT
德州仪器TI:
16-Bit, 2MSPS ADC with P8/P16 Parallel Output, Internal Clock & Internal Reference
艾睿:
Single Channel Single ADC SAR 2Msps 16-bit Parallel 48-Pin TQFP T/R
安富利:
ADC Single SAR 2Msps 16-bit Parallel 48-Pin TQFP T/R
Chip1Stop:
Single Channel Single ADC SAR 2Msps 16-bit Parallel 48-Pin TQFP T/R
Verical:
Single Channel Single ADC SAR 2Msps 16-bit Parallel 48-Pin TQFP T/R
数字逻辑电平 SAR
电源电压DC 4.75V min
供电电流 35.0 mA
电路数 1
位数 16
耗散功率 175 mW
采样率 2 Msps
功耗 155 mW
模数转换数ADC 1
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 190 mW
输入通道数 1
输入电压 4.096 V
安装方式 Surface Mount
引脚数 48

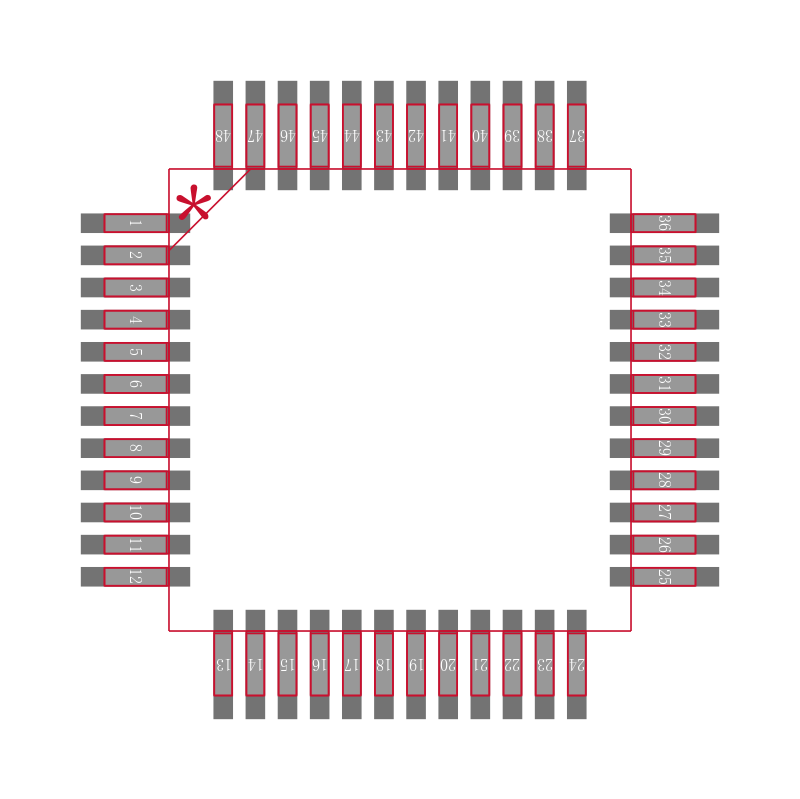

封装 TQFP-48
封装 TQFP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ADS8411IBPFBT TI 德州仪器 | 当前型号 | 当前型号 |
ADS8411IPFBT 德州仪器 | 完全替代 | ADS8411IBPFBT和ADS8411IPFBT的区别 |
ADS8411IBPFBR 德州仪器 | 完全替代 | ADS8411IBPFBT和ADS8411IBPFBR的区别 |
ADS8411IBPFBTG4 德州仪器 | 完全替代 | ADS8411IBPFBT和ADS8411IBPFBTG4的区别 |
