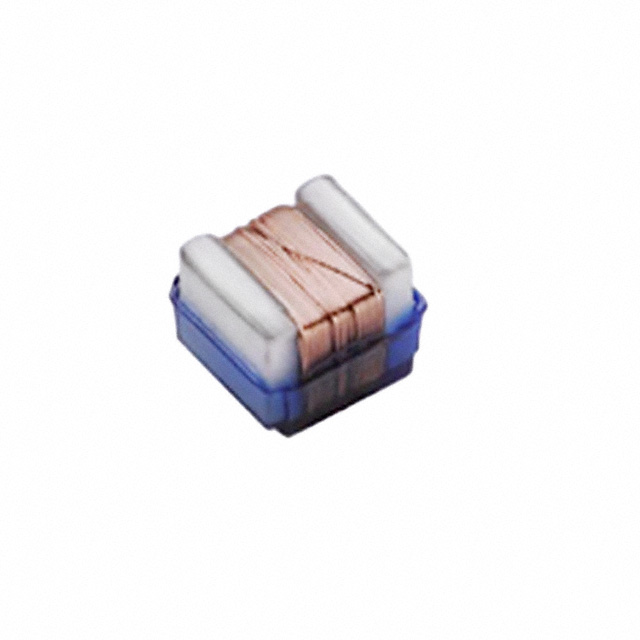

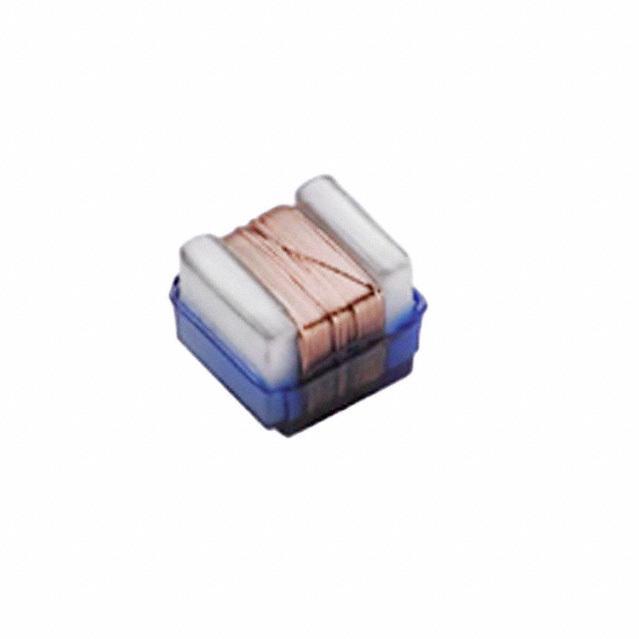

AISC-0603-R018G-T

18nH ±2% 编带

18nH Unshielded Wirewound Inductor 550mA 150mOhm Max Nonstandard

立创商城:
18nH ±2%

得捷:
FIXED IND 18NH 550MA 150MOHM SMD

贸泽:
Fixed Inductors 18nH 2% -40C +125C

艾睿:
An ideal space-saving electronic component is this rf chip AISC-0603-R018G-T surface mount inductor from Abracon Corporation. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.8 mm long, 1.02 mm tall and 1.12 mm deep. This SMD inductor has a maximum DC current of 550m A with a maximum resistance of 150m Ohm. It has a tolerance of 2%. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 5.5G Hz. It has an inductance of 18n H. This device is made with wirewound technology.

安富利:
Ind Chip Unshielded Wirewound 18nH 2% 250MHz 37Q-Factor Ceramic 550mA 0603 T/R

Verical:
Inductor RF Wirewound 0.018uH 2% 250MHz 37Q-Factor Ceramic 0.55A 0.15Ohm DCR 0603 T/R
