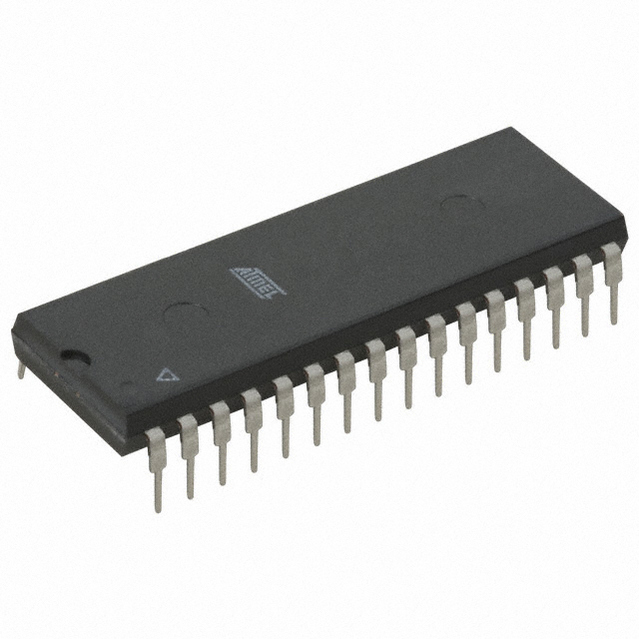

AT29C020-12PC

Flash Mem Parallel 5V 2M-Bit 256K x 8 120ns 32Pin PDIP

Description

The AT29C020 is a 5-volt-only in-system Flash programmable and erasable read only memory PEROM. Its 2 megabits of memory is organized as 262,144 bytes. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 90 ns with power dissipation of just 220 mW over the ommercial temperature range. When the device is deselected, the CMOS standby current is less than 100 µA. Device endurance is such that any sector can typically be written to in excess of 10,000 times.

Features

•Fast Read Access Time - 90 ns

•5-Volt-Only Reprogramming

•Sector Program Operation

  Single Cycle Reprogram Erase and Program

  1024 Sectors 256 bytes/sector

  Internal Address and Data Latches for 256-Bytes

•Internal Program Control and Timer

•Hardware and Software Data Protection

•Two 8 KB Boot Blocks with Lockout

•Fast Sector Program Cycle Time - 10 ms

•DATA Polling for End of Program Detection

•Low Power Dissipation

  40 mA Active Current

  100 µA CMOS Standby Current

•Typical Endurance > 10,000 Cycles

•Single 5V ±10% Supply

•CMOS and TTL Compatible Inputs and Outputs

•Commercial and Industrial Temperature Ranges
