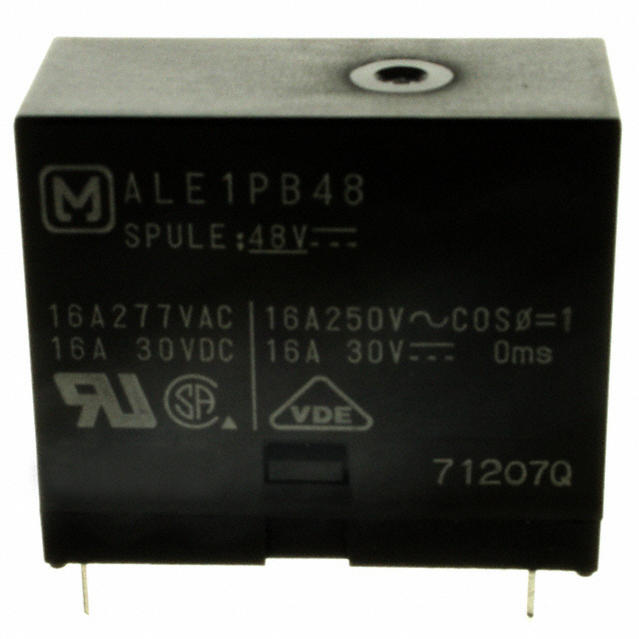

ALE1PB48

ALE 系列 16 A 单刀单掷 48 VDC 通孔 无极性 功率继电器

FEATURES

1\. Supports magnetron and heater loads.

   Capable for switching magnetron and heater loads found in microwave ovens.

2\. Excellent heat resistance

   Ambient temperature: up to 85°C 185°F Certified UL coil insulation class B and class F

3\. High insulation resistance Creepage distance and clearances between contact and coil:

   Min. 8 mm .315 inch Surge withstand voltage: 10,000V

4\. Low operating power

   Nominal operating power: 400mW/200mW High sensitive type

5\. A wide variety of types

   Product line consists of 4 types with different shapes and pins

6\. Conforms to the various safety standards:

   UL, CSA, TÜV and VDE approved

   UL, CSA and VDE approved PCB type

TYPICAL APPLICATIONS

• Microwave ovens

• Refrigerators

• OA equipment
