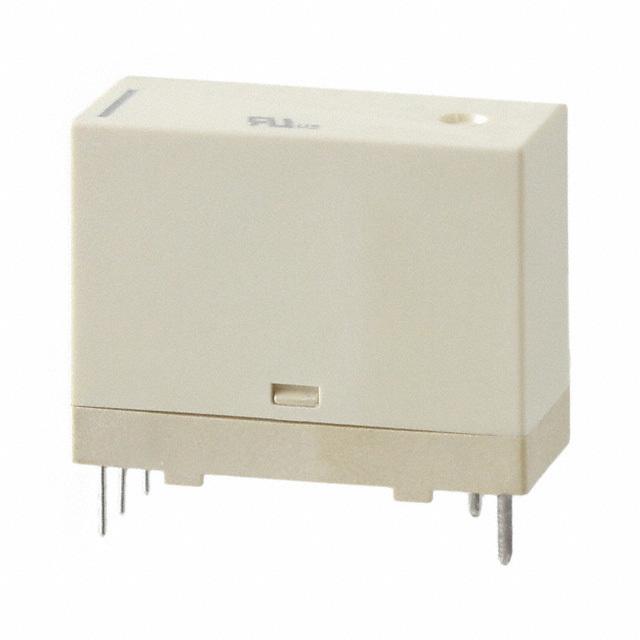

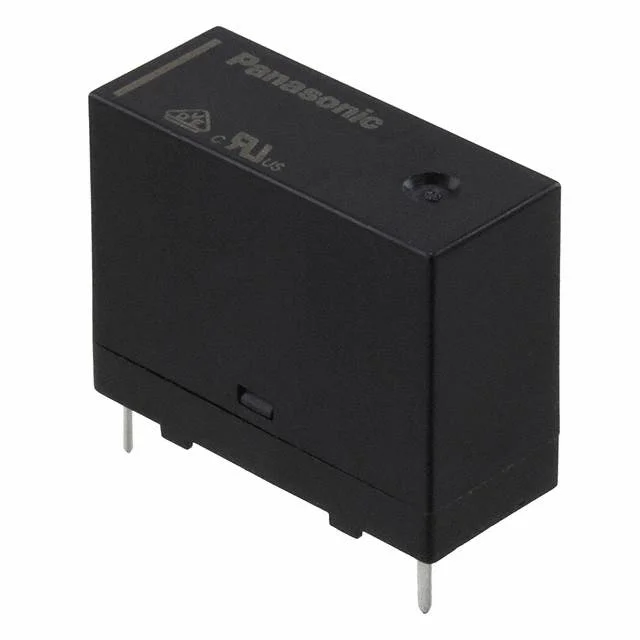

PANASONIC ELECTRIC WORKS ADW1103W 功率继电器, 250VAC, 8A, SPST-常开, PCB
通用 继电器 SPST-NO（1 Form A） 3VDC 线圈 通孔
立创商城:
3VDC 8A 锁存,单线圈
得捷:
RELAY GEN PURPOSE SPST 8A 3V
e络盟:
功率继电器, 250VAC, 8A, SPST-常开, PCB
艾睿:
Power Relay 3VDC 8A SPST-NO 24mm 10mm 18.8mm THT
安富利:
Electromechanical Relay SPST-NO 8A 3V 45Ohm Through Hole
Verical:
Electromechanical Relay 3VDC 45Ohm 8A SPST-NO 24x10x18.8mm THT Power Relay
Newark:
# PANASONIC ELECTRIC WORKS ADW1103W Power Relay, SPST-NO, 3 VDC, 8 A, DWADW1 Series, Through Hole, Latching Single Coil
MASTER:
Power Relay 3VDC 8A SPST-NO24x10x18.8mm THT
Online Components:
Power Relay 3VDC 8A SPST-NO24x10x18.8mm THT
Electro Sonic:
Power Relay 3VDC 8A SPST-NO24x10x18.8mm THT
Win Source:
RELAY GEN PURPOSE SPST 8A 3V / General Purpose Relay SPST-NO 1 Form A 3VDC Coil Through Hole
额定电压AC 250 V
绝缘电阻 1000 MΩ
触点类型 SPST-NO
触点额定电流 8 A
线圈电压 3 VDC
线圈电流 66.7 mA
线圈电阻 45 Ω
额定电流Max 8 A
线圈电压DC 3 V
额定功率Max 2 KVA
开关电流Max 8 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 4
封装 -
高度 18.8 mm
封装 -
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
