监控电路 WD,ODb,PP,200msTO,1.6sWD,3.0V
Product Details
The ADM8316 / ADM8318 / ADM8319 / ADM8320 / ADM8321 / ADM8322 are supervisory circuits that monitor power supply voltage levels and code execution integrity in microprocessor-based systems. As well as providing power-on reset signals, an on-chip watchdog timer can reset the microprocessor if it fails to strobe within a preset timeout period. A reset signal can also be asserted by an external push-button switch through a manual reset input. The six devices feature different combinations of watchdog input, manual reset input, and output stage configuration.
Each device is available in a choice of 27 reset threshold options ranging from 2.5 V to 5 V in 100 mV increments. There are also four reset timeout options of 1 ms, 20 ms, 140 ms, and 1120 ms minimum and four watchdog timeout options of 6.3 ms, 102 ms, 1.6 sec, and 25.6 sec typical.

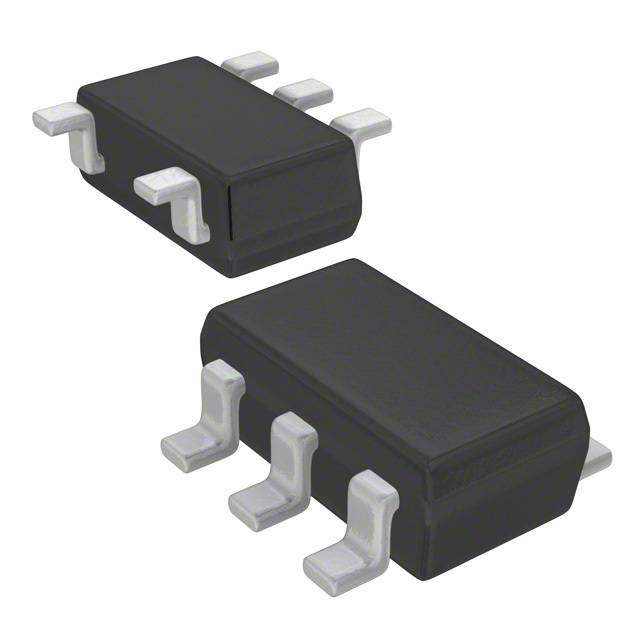

The ADM8316 / ADM8318 / ADM8319 / ADM8320 / ADM8321 / ADM8322 are available in 5-lead SOT-23 packages and typically consume only 10 µA, making them suitable for use in low power, portable applications.
**Applications**
- .
- Automotive infotainment
- .
- Microprocessor systems
- .
- Computers
- .
- Controllers
- .
- Intelligent instruments
- .
- Portable equipment
### Features and Benefits
- .
- 27 reset threshold options
- .
- 2.5 V to 5 V in 100 mV increments
- .
- 4 reset timeout options
- .
- 1 ms, 20 ms, 140 ms, and 1120 ms minimum
- .
- 4 watchdog timeout options
- .
- 6.3 ms, 102 ms, 1.6 sec, and 25.6 sec typical
- .
- Manual reset input
- .
- Multiple reset output options
- .
- Low power consumption
- .
- Specified over wide temperature range −40°C to +125°C
- .
- Qualified for automotive applications
- .
- 5-lead SOT-23 package
