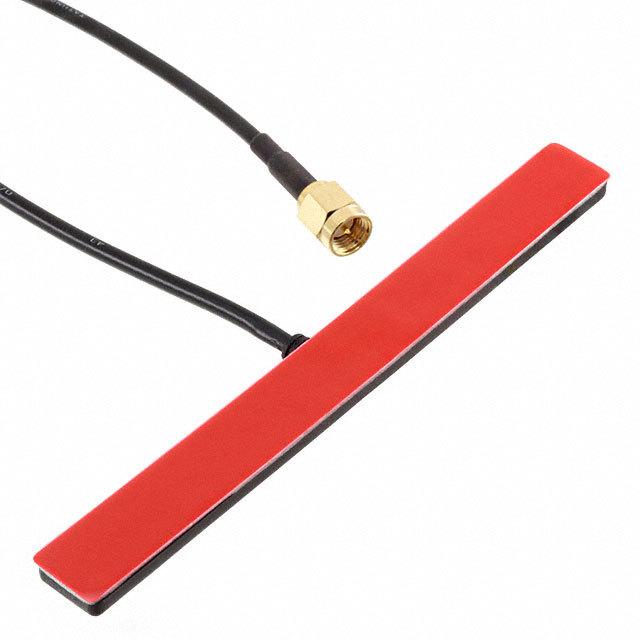

ALPHA 1A GSM/GPRS/3G/WiFi/ISM T-Bar Antenna, SirettaThe ALPHA 1A is a low profile, T-Bar antenna tuned to quad band GSM/GPRS/3G/WiFi/ISM frequencies. Measuring 104 x 10.8 x 4 mm, The ALPHA 1A is easily mounted onto most surfaces using its adhesive base. It achieves a peak gain of 3.8 dBi. The Alpha 1A is supplied with a choice of RG174 coaxial cable lengths, all with an SMA male connector. ALPHA1A/1M/SMAM/S/S/11 - 1 metre cable RS 124-8662 ALPHA1A/2.5M/SMAM/S/S/11 - 2.5 metre cable RS 124-8664Operating Temperature: -20 to 80°C Impedance: 50 Ω Gain peak: 3.8 dBi VSWR: 2.0:1 max Polarisation: Vertical / omnidirectional **Operating Frequencies ** Quad Band GSM/GPRS & 2G: 950, 900, 1800, 1900MHz 3G/UMTS: 2100MHz WiFi/Bluetooth/ZigBee: 2400 MHz ISM: 868 MHz, 915 MHz **Dimensions** Length: 104 mm Width: 10.8 mm Height: 4 mm ### 多频段天线
868MHz，900MHz，915MHz，950MHz，1.8GHz，1.9GHz，2.1GHz，2.4GHz 蓝牙，GPRS，GSM，UMTS，WLAN，Zigbee™ 扁平杆 RF 天线 - 3.8dBi SMA 公头 胶合剂
欧时:
ALPHA 1A GSM/GPRS/3G/WiFi/ISM T-Bar Antenna, SirettaThe ALPHA 1A is a low profile, T-Bar antenna tuned to quad band GSM/GPRS/3G/WiFi/ISM frequencies. Measuring 104 x 10.8 x 4 mm, The ALPHA 1A is easily mounted onto most surfaces using its adhesive base. It achieves a peak gain of 3.8 dBi. The Alpha 1A is supplied with a choice of RG174 coaxial cable lengths, all with an SMA male connector. ALPHA1A/1M/SMAM/S/S/11 - 1 metre cable RS 124-8662 ALPHA1A/2.5M/SMAM/S/S/11 - 2.5 metre cable RS 124-8664Operating Temperature: -20 to 80°C Impedance: 50 Ω Gain peak: 3.8 dBi VSWR: 2.0:1 max Polarisation: Vertical / omnidirectional **Operating Frequencies ** Quad Band GSM/GPRS & 2G: 950, 900, 1800, 1900MHz 3G/UMTS: 2100MHz WiFi/Bluetooth/ZigBee: 2400 MHz ISM: 868 MHz, 915 MHz **Dimensions** Length: 104 mm Width: 10.8 mm Height: 4 mm### 多频段天线，Siretta
得捷:
RF ANT 868/900MHZ FLAT BAR SMA
e络盟:
T Bar GSM / GPRS, 3G, WiFi & ISM Antenna, Adhesive Back, SMA Plug, 2.5m Lead
艾睿:
GSM QUAD BAND 3G WiFi &a; ISM T BAR ADHESIVE ANTENNA WITH 2.5M RG174 AND SMA MALE CONNECTOR
