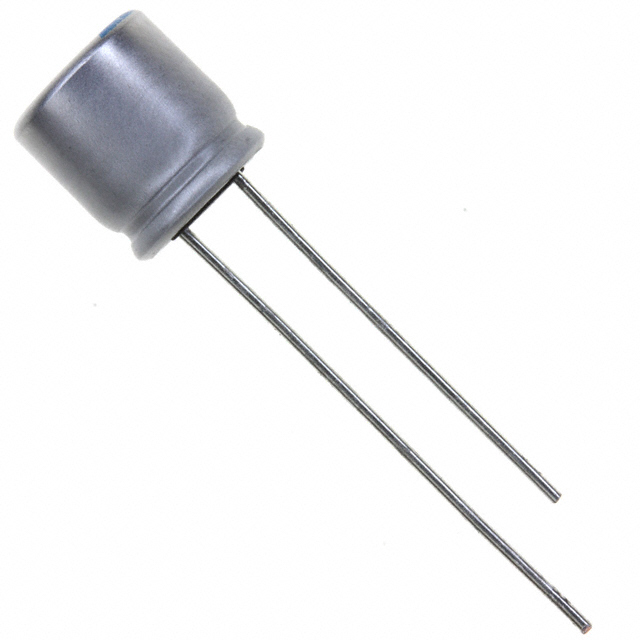

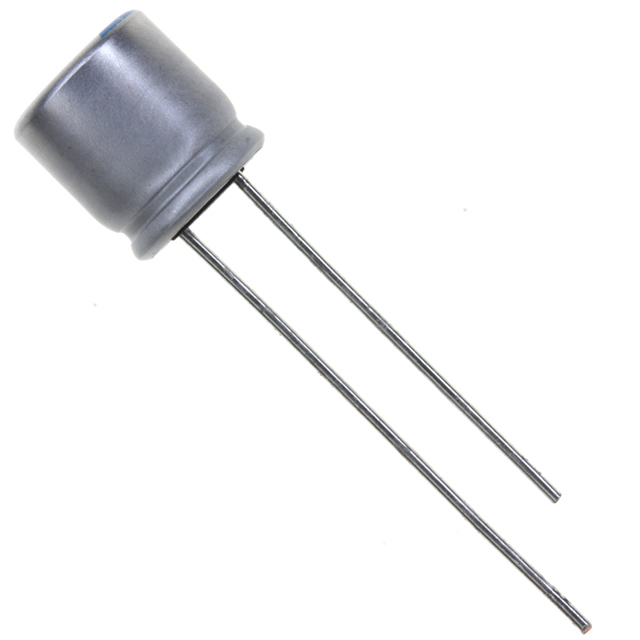

Cap Aluminum Polymer 470uF 6.3VDC 20% 8 X 8mm Radial 3.5mm 0.008Ω 5700mA 2000H 105℃ Bulk
470 µF 6.3 V 铝聚合物器 径向,Can 8 毫欧 105°C 时为 2000 小时
得捷:
CAP ALUM POLY 470UF 20% 6.3V T/H
贸泽:
Aluminum Organic Polymer Capacitors 470uF 6.3 Volt
艾睿:
Look no further than the APSC6R3ELL471MH08S conductive polymer aluminum solid capacitor from United Chemi-con, ideal for use in supporting changes in the load of an integrated circuit. Users like its long lead wire form. It can withstand a voltage of 6.3 VDC. It has 2 terminals. This part has a lead diameter of 0.6 mm. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -55 °C and a maximum of 105 °C. This product is 8 mm tall with a diameter of 8 mm. This product&s;s terminal pitch is 3.5 mm. Its leakage current is 592.2@2Min μA. It has a tolerance of 20%. The APSC6R3ELL471MH08S conductive polymer aluminum solid capacitor has a radial termination style.
Verical:
Cap Aluminum Polymer 470uF 6.3VDC 20% 8 X 8mm Radial 3.5mm 0.008 Ohm 5700mA 2000h 105C Bulk
Electro Sonic:
Cap Aluminum Polymer 470uF 6.3VDC 20% 8 X 8mm Radial 3.5mm 0.008 Ohm 5700mA 2000h 105°C Bulk
额定电压DC 6.3 V
电容 470 µF
等效串联电阻ESR 8 mΩ
容差 ±20 %
纹波电流 5700 mA
纹波电流低频 5.7A @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 3.5 mm
长度 8 mm
高度 8 mm
直径 8 mm
封装 Radial, CAN
引脚间距 3.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
寿命(小时) 2000 h
制造应用 -, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
APSC6R3ELL471MH08S Chemi-Con 贵弥功 | 当前型号 | 当前型号 |
APSC6R3ETD471MH08S 贵弥功 | 类似代替 | APSC6R3ELL471MH08S和APSC6R3ETD471MH08S的区别 |
RL80J471MDN1PX 尼吉康 | 类似代替 | APSC6R3ELL471MH08S和RL80J471MDN1PX的区别 |
RL80J471MDNASQKX 尼吉康 | 功能相似 | APSC6R3ELL471MH08S和RL80J471MDNASQKX的区别 |
