APDS-9306-065

环境光传感器, 数字I2C输出, 560nm峰值灵敏度, 1.7V至3.6V电源, SMD-6

The is a low-voltage digital ambient light sensor that converts light intensity to digital signal output with I2C interface. It consists of photodiode, ADC, oscillator and power-on reset to ensure consistent start-up. The APDS-9306-065 approximates the response of the human eye and provides direct read out where the output count is proportional to ambient light level.

### Features

.

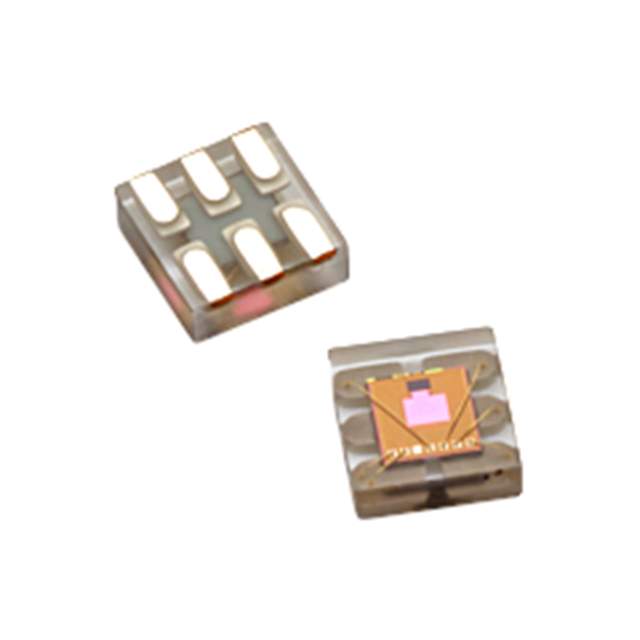

Miniature package size: L2.00 x W2.00 x H0.65 mm

.

Utilizes coating technology to emulate human eye spectral response

.

High sensitivity in low lux conditions - ideally suited for operation behind dark glass

.

Low lux performance at 0.01 lux

.

Up to 20-Bit resolution

.

Wide power supply range: 1.7V to 3.6V

.

I2C interface compatible with dedicated interrupt pin

.

Low power consumption: 85 µA typical in active mode
