ADGS1412BCPZ

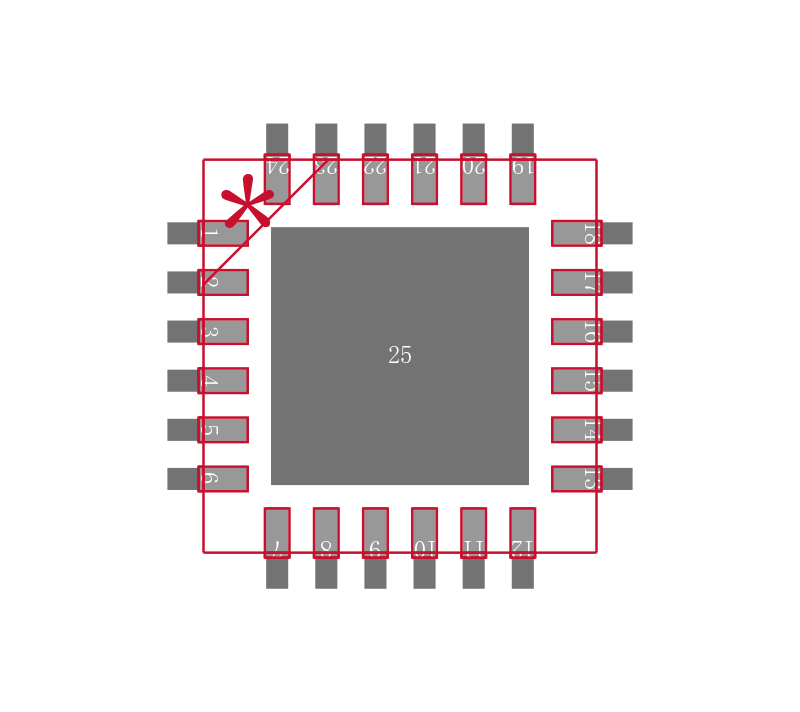

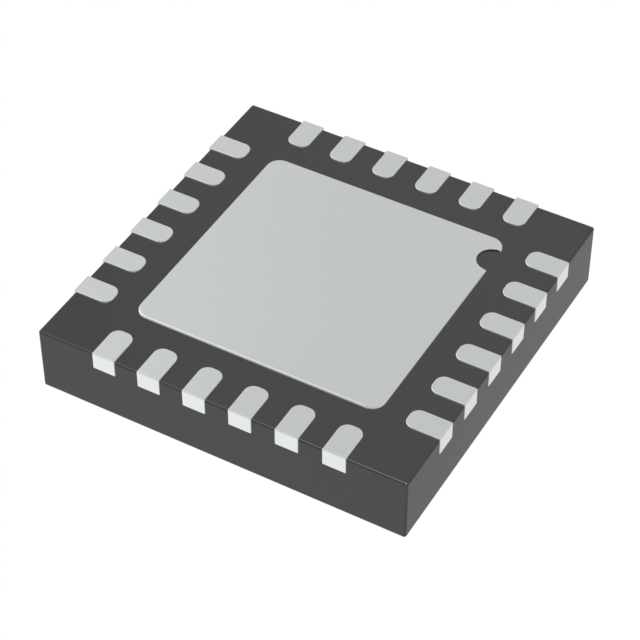

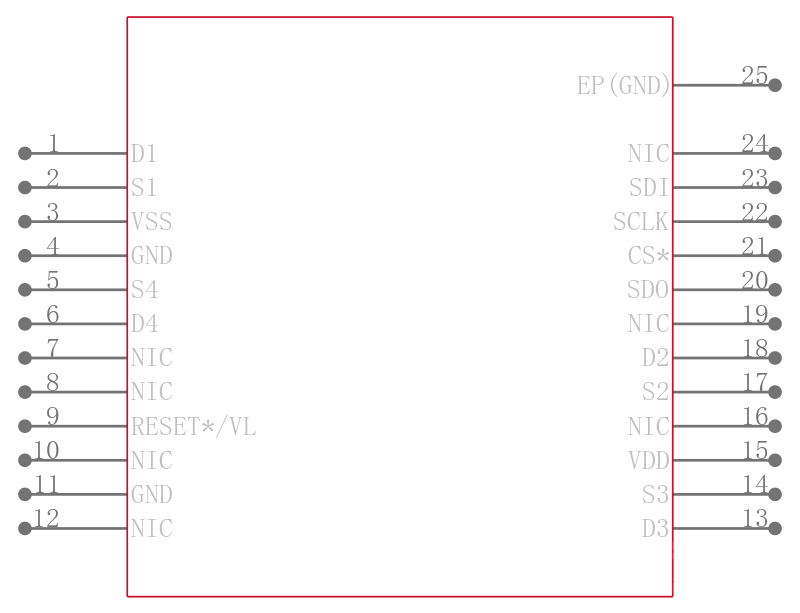

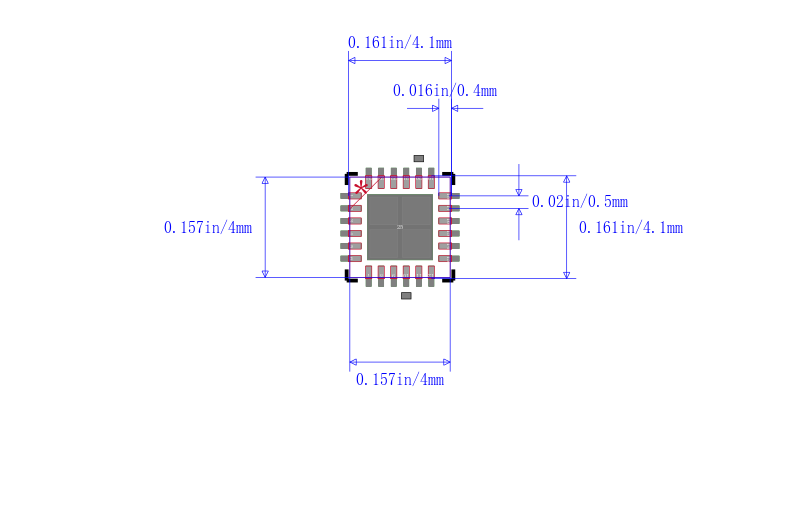

模拟开关, 4 放大器, SPST, 2.6 ohm, ± 4.5V 至 ± 16.5V, LFCSP, 24 引脚

The from Analog Devices is a serially controlled, high voltage, iCMOS, quad SPST switch in 24 pin LFCSP package. It contains four independent single pole/single throw SPST switches. An serial peripheral interface SPI controls the switches. It is possible to daisy chain multiple ADGS1412 devices together. Daisy chain mode enables the configuration of multiple devices with a minimal amount of digital lines. It can also operate in burst mode to decrease the time between SPI commands. iCMOS construction ensures ultralow power dissipation, making the device ideally suited for portable and battery powered instruments. Each switch conducts equally well in both directions when on and each switch has an input signal range that extends to supplies. In the off condition, signal levels up to supplies are blocked. It is used in automated test equipment, data acquisition systems, sample and hold systems and relay replacement.

.

SPI interface with error detection, CRC, invalid read/write address and SCLK count error detection

.

Includes CRC, invalid read/write address and SCLK count error detection

.

Supports burst and daisy chain mode, 0.9ohm on-resistance flatness at 25°C, VDD = ±5V

.

Industry standard SPI mode 0 and mode 3 interface compatible

.

3.3ohm on-resistance, 0.13ohm on-resistance match between channels at +25°C, VDD = ±5V

.

Fully specified at ±15V, ±5V and +12V VSS to VDD analogue signal range

.

Channel to channel crosstalk of -100dB, -3dB bandwidth of 130MHz at +25°C, VDD = ±5V

.

Safety integrity level SIL compatible, minimum distortion

.

10pC charge injection, -76dB off isolation at +25°C, VDD = ±5V

.

Operating temperature range from -40°C to +125°C

ESD sensitive device, proper ESD precaution should be taken to avoid performance degradation or loss of functionality.
