模数转换器, 16 bit, 4 kSPS, 差分、单端, SPI, 单S, 双+/-, 2.7 V
The ADS114S06 and ADS114S08 are precision, 16-bit, delta-sigma ΔΣ, analog-to-digital converters ADCs that offer low power consumption and many integrated features to reduce system cost and component count in applications measuring small-signal sensors.
These ADCs feature configurable digital filters that offer low-latency conversion results and 50-Hz or 60-Hz rejection for noisy industrial environments. A low-noise, programmable gain amplifier PGA provides gains ranging from 1 to 128 to amplify low-level signals for resistive bridge or thermocouple applications. Additionally, these devices integrate a low-drift, 2.5-V reference that reduces printed circuit board PCB area. Finally, two programmable excitation current sources IDACs allow for easy and accurate RTD biasing.

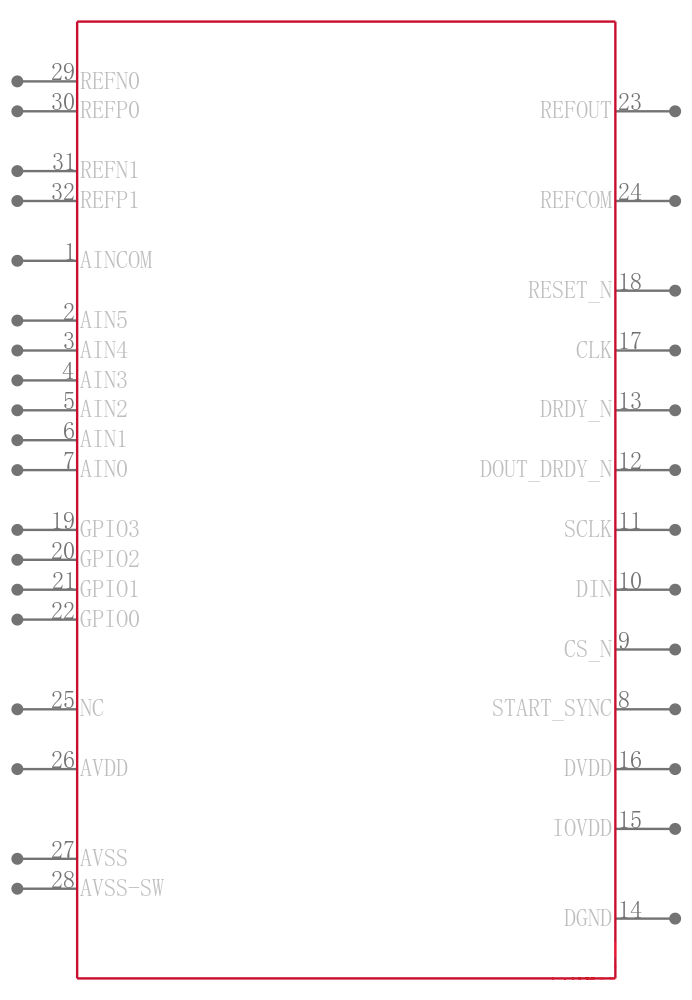

An input multiplexer supports 12 inputs for the ADS114S08 and six inputs for the ADS114S06 that can be connected to the ADC in any combination for design flexibility. In addition, these devices include features such as sensor burn-out detection, voltage bias for thermocouples, system monitoring, and four general-purpose I/Os.

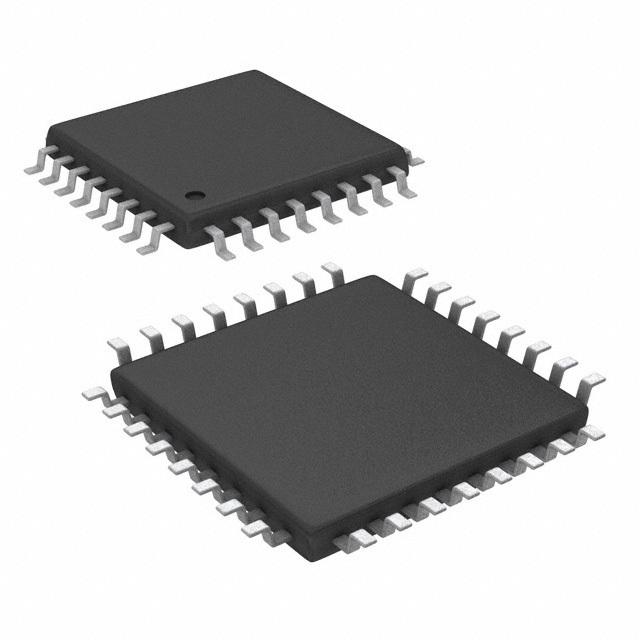

The devices are offered in a leadless VQFN-32 or a TQFP-32 package.
