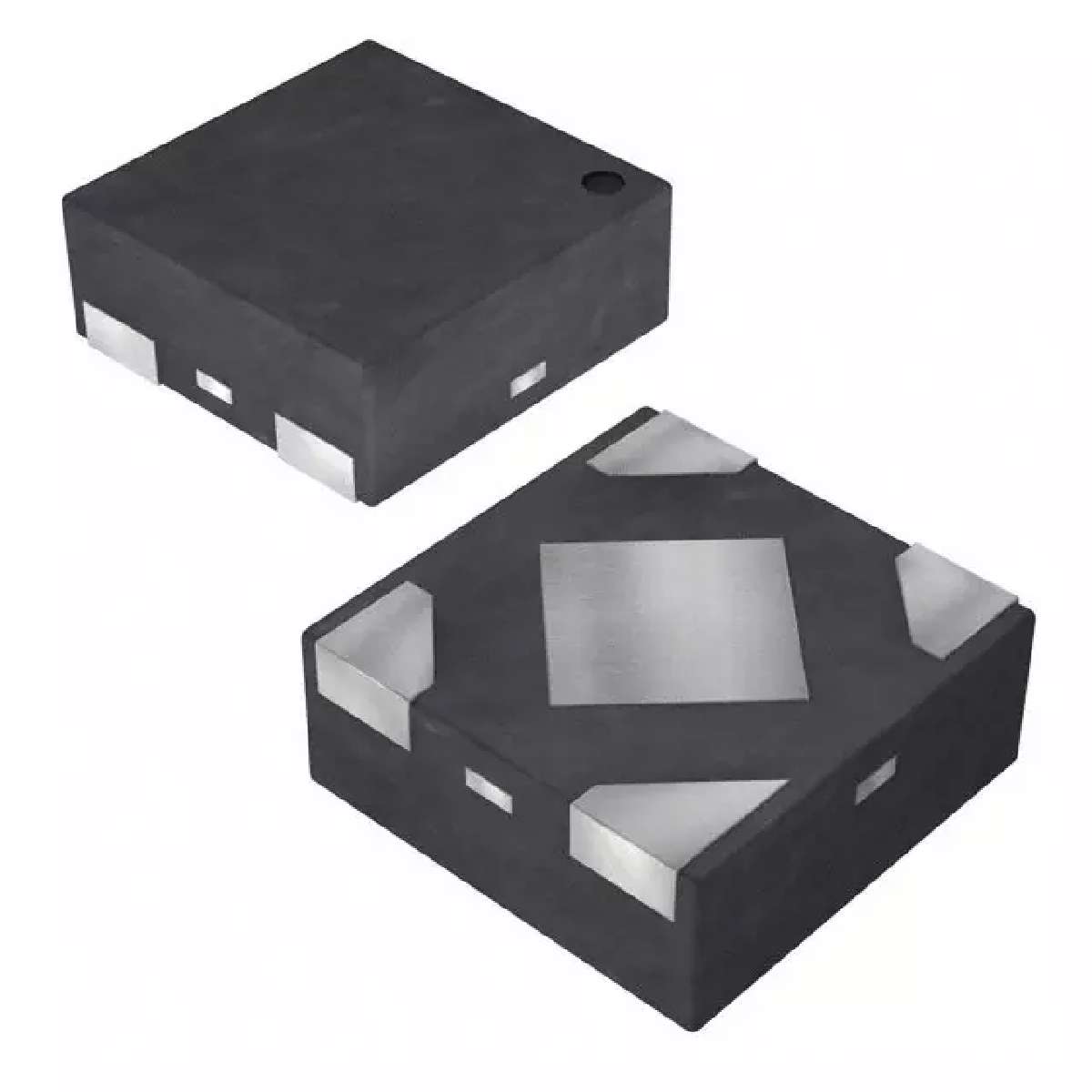

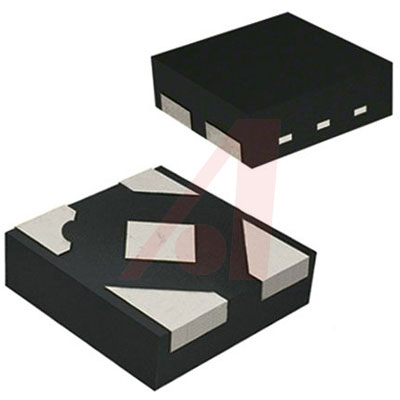

AP7340D-18FS4-7

AP7340D 系列 150 mA 1.8 V 固定输出 LDO 线性稳压器 - X2-DFN1010-4

Linear Voltage Regulator IC 1 Output 150mA X2-DFN1010-4

得捷:
IC REG LINEAR 1.8V 150MA 4DFN

艾睿:
This LDO AP7340D-18FS4-7 linear regulator from Diodes Zetex gives you control over the voltage levels of your circuit. This device has a maximum power dissipation of 400 mW. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.34@150mA V. This voltage regulation device&s;s single output can produce a current up to 0.15Min A. Using the part will provide the power your application needs by requiring a voltage only of 1.7 V and not exceeding a voltage of 5.25 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. A load regulation of 1%/A and line regulation of 0.1%/V is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 400 mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.42@150mA V.

Allied Electronics:
150mA 1.8V Low Noise LDO Reg. X2-DFN1010

安富利:
LDO Regulator Pos 1.8V 0.15A 4-Pin X2-DFN T/R

Verical:
LDO Regulator Pos 1.8V 0.15A 4-Pin X2-DFN EP T/R
