正 Vin=6V Vout=3.3V 1A 65dB

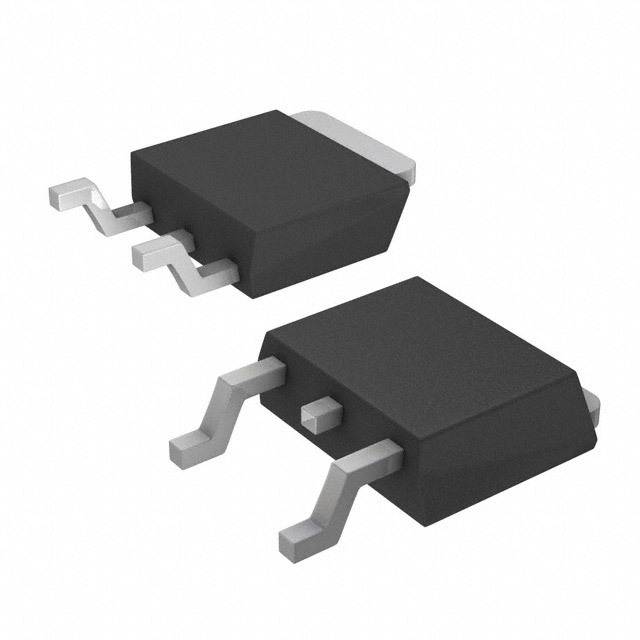

Linear Voltage Regulator IC 1 Output 1A TO-252, D-Pak
得捷:
IC REG LINEAR 3.3V 1A TO252
立创商城:
正 Vin=6V Vout=3.3V 1A 65dB
艾睿:
If you need to maintain a steady voltage on your circuit, then this LDO AP7361-33D-13 linear regulator from Diodes Zetex is perfect for you! This device has a maximum power dissipation of 1250 mW. Its typical dropout voltage at current is 0.15@300mA|0.25@500mA|0.5@1A V. It has an overall accuracy of ±1 %. This voltage regulation device&s;s single output can produce a current up to 1 A. It only needs a voltage of at least 2.2 V while not exceeding 6 V to effectively power your circuit. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 1% and line regulation of 0.1%/V is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 1250 mW. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. The maximum dropout voltage is 0.2@300mA|0.35@500mA|0.7@1A V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is positive.
安富利:
LDO Regulator Pos 3.3V 1A 3-Pin2+Tab TO-252 T/R
Verical:
LDO Regulator Pos 3.3V 1A 3-Pin2+Tab TO-252 T/R
输出接口数 1
输出电压 3.3 V
输出电流 1 A
耗散功率 1.25 W
跌落电压 0.5V @1A,0.25V @500mA,0.15V @300mA
输入电压Max 6 V
输入电压Min 2.2 V
输出电流Max 1 A
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 1250 mW
精度 ±1 %
输入电压 ≤6 V
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
封装 TO-252-3
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
