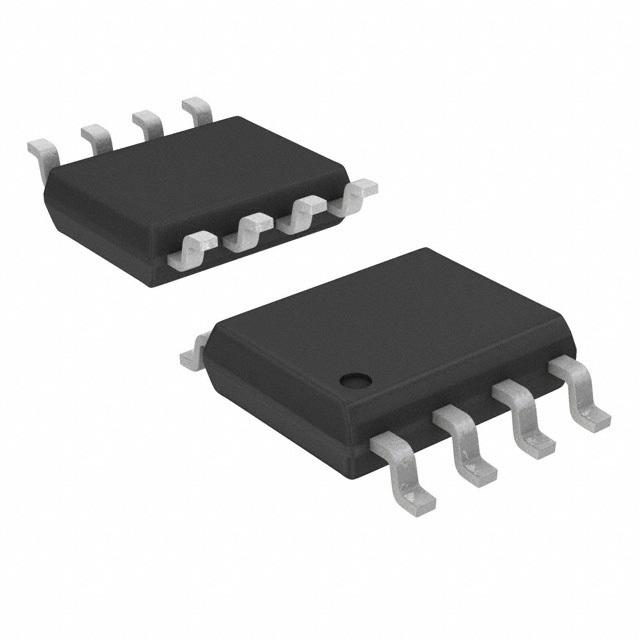

DIODES INC. AP2141SG-13 电源负载开关, 限流, 高压侧, 低电平有效, 1路输出, 5.5V, 0.8A, SOP-8
Use this high side switch USB powered Ethernet switch from Zetex to control which one of your devices draws power. Using the part will provide the power your application needs by requiring a voltage only of 2.7 V and not exceeding a voltage of 5.5 V. Its current limit is 0.8 A. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This USB powered network switch has an operating temperature range of -40 °C to 85 °C.
输出接口数 1
输入电压DC 5.50 V
针脚数 8
漏源极电阻 0.12 Ω
上升时间 600 µs
输入电压Max 5.5 V
输入电压Min 2.7 V
输出电流Max 500 mA
下降时间 50 µs
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 5.5 V
电源电压Min 2.7 V
输入电压 5.5 V
安装方式 Surface Mount
引脚数 8
封装 SOP-8
封装 SOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 消费电子产品, 通信与网络, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
