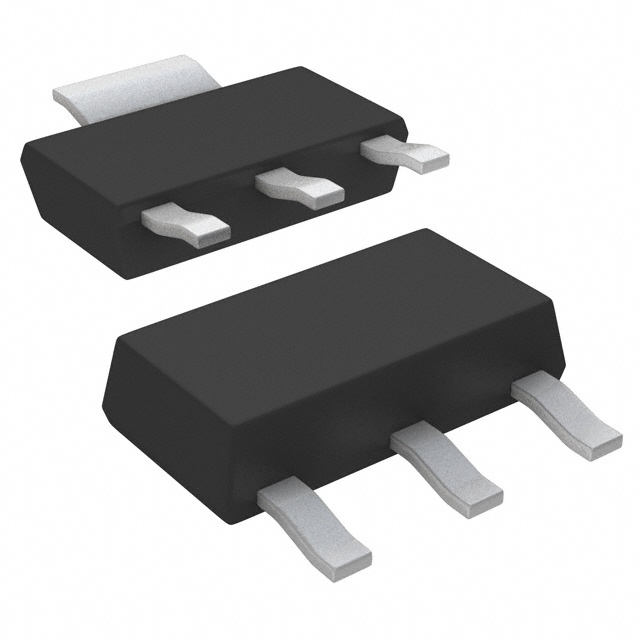

AP2114HA-3.3TRG1

正 Vin=6V Vout=3.3V 1A 65dB@100Hz,1kHz

* Output Voltage Accuracy: ±1.5% * Output Current: 1A Min * Fold-back Short Current Protection: 50mA * Low Dropout Voltage 3.3V: 450mV Typ@IOUT =1A * Stable with 4.7 μF Flexible Cap: Ceramic, Tantalum and Aluminum Electrolytic * Excellent Line Regulation: 0.02%/V Typ,0.1%/V Max @ I OUT =30mA * Excellent Load Regulation: 0.2%A Typ @I OUT =1mA to 1A * Low Quiescent Current: 60 μA 1.2V/1.5V/1.8V /2.5V/ADJ * Low Output Noise: 30 μV RMS * PSRR: 68dB @ Freq=1KHz 1.2V/1.5V/1.8V /ADJ * OTSD Protection * Operating Temperature Range: -40°C to 85°C * ESD: MM 400V, HBM 4000V
