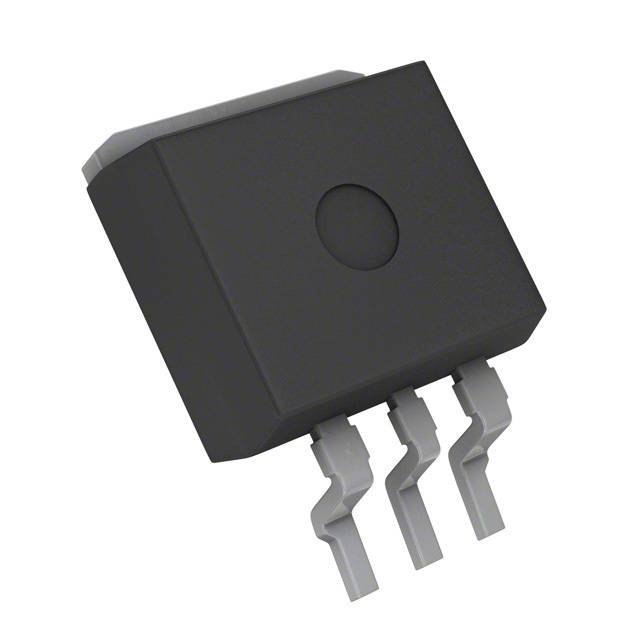

DIODES INC. AP1086K15L-13 芯片, LDO稳压器, 1.5V, 3TO263
General Description
AP1086 is a low dropout positive adjustable or fixed-mode regulator with 1.5A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V logic supply. AP1086 is also well suited for other applications such as VGA cards. AP1086 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25V to 5.0V with 4.7 to 12V input supply by different output voltage.
• 3-Terminal Adjustable or Fixed 1.5V, 1.8V, 2.5V,3.3V,5.0V
• 1.4V Maximum Dropout at Full Load Current
• Fast Transient Response
• Built-in Thermal Shutdown
• Output Current Limiting
• Packages: TO252-3L, TO263-3L, and TO220-3L
输出接口数 1
输入电压DC 12.0V max
输出电压 1.5 V
输出电流 1.5 A
耗散功率 15000 mW
跌落电压 1.3V @1.5A
输入电压Max 12 V
输入电压Min 4.7 V
输出电流Max 1.5 A
工作温度Max 125 ℃
工作温度Min 0 ℃
耗散功率Max 15000 mW
输入电压 4.7V ~ 12V
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
封装 TO-263-3
工作温度 0℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AP1086K15L-13 Diodes 美台 | 当前型号 | 当前型号 |
AP1086K15L-U 美台 | 类似代替 | AP1086K15L-13和AP1086K15L-U的区别 |
