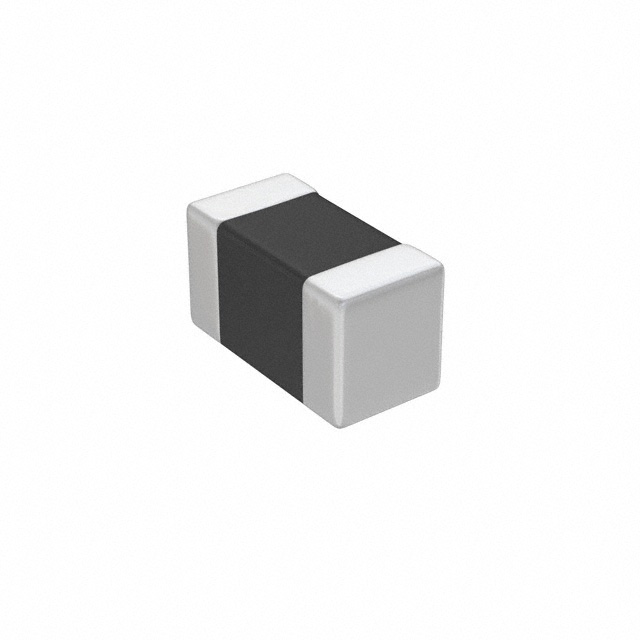

Var MLV 5.6VDC 150V 0402 SMD T/R
CeraDiodes High-speed series
Features
Very low capacitance values 0.6 up to 10 pF
ESD protection to IEC 61000-4-2, level 4
Bidirectional ESD protection in one component
No change in ESD protection performance at temperatures up to 85 °C temperature derating
Low parasitic inductance
Low leakage current
Fast response time <0.5 ns
Lead-free nickel barrier terminations suitable for lead-free soldering
RoHS-compatible
Applications
Interfaces, data lines USB, IEEE 1394, Ethernet, parallel port, SATA, DisplayPort, etc., audio lines digital and video lines analog, DVI, HDMI, ICs and I/O ports
Consumer electronic products TV, DVD player/recorder, set-top box, game consoles, MP3 player, digital still/video camera, etc.
EDP products desktop and notebook computer, monitor, PDA, printer, memory card, control unit, head set, speaker, HDD, optical drive, etc.
Industrial applications
Mobile phone applications
