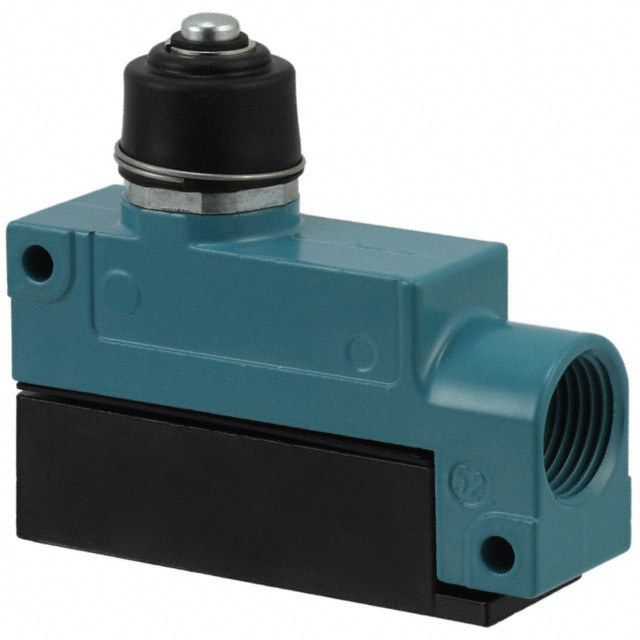

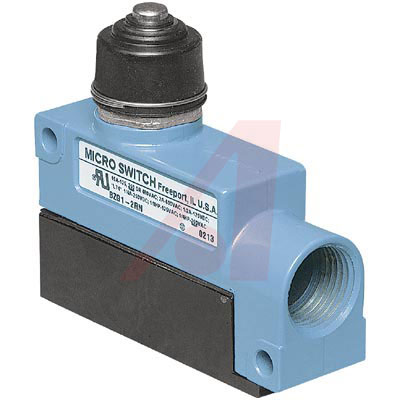

HONEYWELL BZG1-2RN 微型开关
BZG/BZH switches have a neoprene seal gasket between the housing halves, elastomer boot actuators, sealed conduit connectors, and die-cast aluminum housing. Mounting holes are located outside the switch cavity and accept No. 10 screws.
贸泽:
Limit Switches Top Plunger Actuator
e络盟:
微型开关
艾睿:
The enclosed BZG1-2RN limit switch, developed by Honeywell, can provide your project motion controlled data, as the switch itself is activated through movement or the presence of another object. BZG1-2RN is housed in zinc die cast. This device has a maximum current rating of 0.5 A @ 125VDC. It has a SPDT configuration. This limit switch has a minimum operating temperature of -32 °C and a maximum of 71 °C. The BZG1-2RN limit switch has a conduit termination style. This product is 86.1 mm long, 74.9 mm tall and 25.9 mm deep. The maximum DC voltage rating is 250 VDC.
Allied Electronics:
Enclosed Switch, Compact, 15 Amps, Side MOUNT, STRAIGHT Plunger
Chip1Stop:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 6.67N Linear Screw Mount
Verical:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 6.67N Linear Screw Mount
Newark:
# HONEYWELL BZG1-2RN Limit Switch, Plunger, SPDT-1NO, SPDT-NC, 15 A, 600 V, 24 ozf
MASTER:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 6.67N Linear Screw Mount
Electro Sonic:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 6.67N Linear Screw Mount
