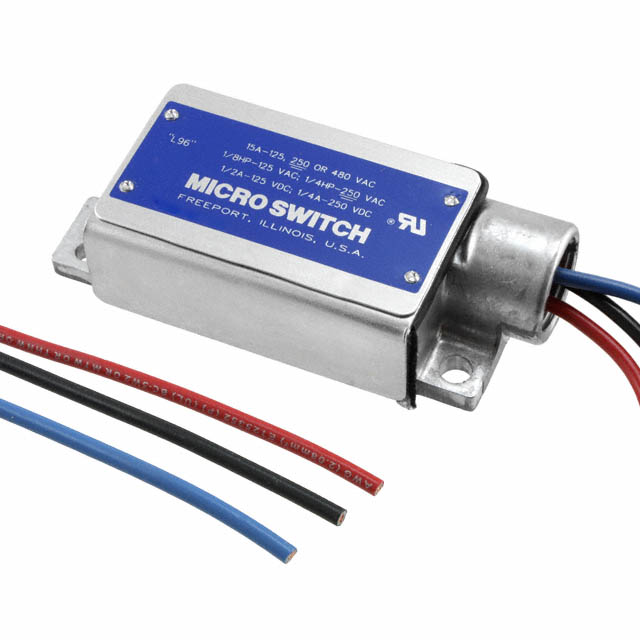

HONEYWELL BZLN-LH Microswitch, SPDT, 15A, 480VAC, 250VDC
Limit and Compact Pre-Wired Enclosed Switch
LN switches are designed for impact actuation. Impact on the actuating plunger cannot reach the precision switch unit inside.
** Features**
* Cast Zinc Housing
* Positioning Dowel Holes
** Specifications**
* #14 HWM Wire Leads
* UL Recognized, File #E12252
* CSA Certified, File #LR41372
* Sealing: NEMA 1,3,4,13
* Operating Temperature: -25° to +131°F
贸泽:
Limit Switches TopPlngr Act-LFT HND
艾睿:
Are you looking for a device that can relay information to the processor based on its motion? The enclosed BZLN-LH limit switch from Honeywell is for you. It has a SPDT configuration. BZLN-LH is housed in zinc die cast. This device has a maximum current rating of 0.5 A @ 125VDC. This limit switch has an operating temperature range of -32 °C to 55 °C. The BZLN-LH limit switch has a conduit termination style. This product is 103.1 mm long, 49.53 mm tall and 25.4 mm deep. The maximum DC voltage rating is 250 VDC.
Allied Electronics:
Enclosed Switch, Compact, Prewired, 15 Amps, Top Plunger Actuator
Verical:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 22.2N Linear Panel Mount/Screw Mount
Newark:
# HONEYWELL BZLN-LH Microswitch, SPDT, 15 A, 480 VAC, 250 VDC
MASTER:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 22.2N Linear Panel Mount/Screw Mount
Electro Sonic:
Switch Limit N.O./N.C. SPDT Top Plunger Conduit 0.5A 250VDC 22.2N Linear Panel Mount/Screw Mount
