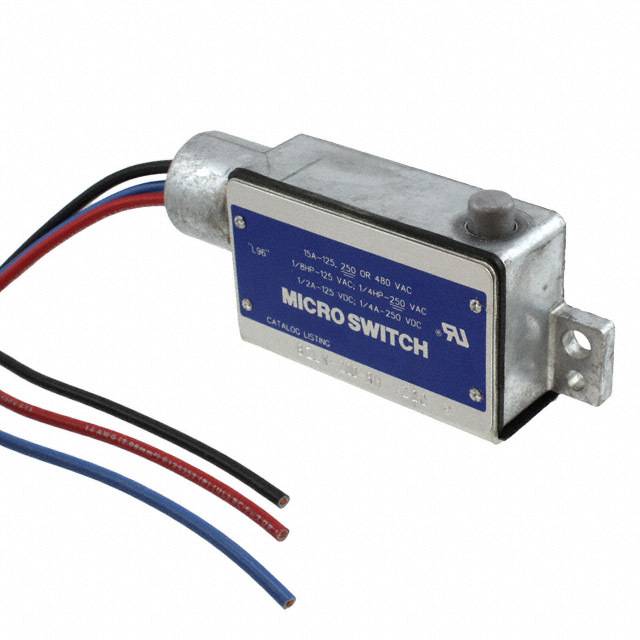

Switch Limit N.O./N.C. SPDT Top Plunger Wire Lead 0.5A 250VDC 22.2N Linear Screw Mount
Limit and Compact Pre-Wired Enclosed Switch
LN switches are designed for impact actuation. Impact on the actuating plunger cannot reach the precision switch unit inside.
** Features**
* Cast Zinc Housing
* Positioning Dowel Holes
** Specifications**
* #14 HWM Wire Leads
* UL Recognized, File #E12252
* CSA Certified, File #LR41372
* Sealing: NEMA 1,3,4,13
* Operating Temperature: -25° to +131°F
得捷:
SWITCH SNAP ACTION SPDT 15A 125V
艾睿:
Switch Limit N.O./N.C. SPDT Top Plunger Wire Lead 0.5A 250VDC 22.2N Linear Screw Mount
Allied Electronics:
Enclosed Switch, 1NC/1NO, SPDT, 15 Amps, Snap Action
Verical:
Switch Limit N.O./N.C. SPDT Top Plunger Wire Lead 0.5A 250VDC 22.2N Linear Screw Mount
Newark:
# HONEYWELL BZLN-RH3 Limit Switch, Top Plunger, SPDT, 15 A, 480 V, 22.2 N, BZLN Series
MASTER:
Switch Limit N.O./N.C. SPDT Top Plunger Wire Lead 0.5A 250VDC 22.2N Linear Screw Mount
Electro Sonic:
Switch Limit N.O./N.C. SPDT Top Plunger Wire Lead 0.5A 250VDC 22.2N Linear Screw Mount
