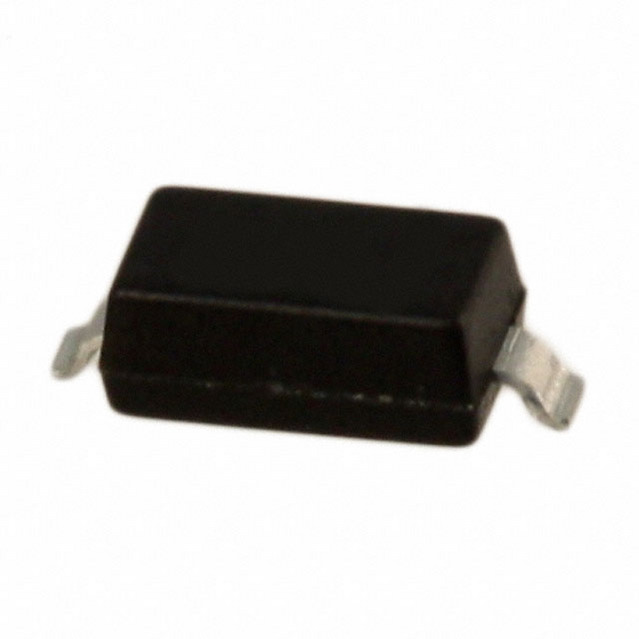

Diodes Inc BAV16W-7-F 开关二极管, 300mA 100V, 2引脚 SOD-123封装
BAV16W Series 2 A 100 V 400 mW Surface Mount Fast Switching Diode - SOD-123
得捷:
DIODE GEN PURP 100V 300MA SOD123
立创商城:
85V 215mA 1.25V@150mA
艾睿:
Converting from AC to DC is simple when using a switching diode BAV16W-7-F rectifier from Diodes Zetex. Its maximum power dissipation is 400 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its peak non-repetitive surge current is 2 A, while its maximum continuous forward current is 0.15 A. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
Diode Switching 100V 0.15A 2Pin SOD123
安富利:
Diode Switching 100V 0.15A 2-Pin SOD-123 T/R
富昌:
BAV16W 系列 2 A 100 V 400 mW 表面贴装 快速 开关二极管 - SOD-123
Chip1Stop:
Diode Switching 100V 0.15A 2-Pin SOD-123 T/R
Verical:
Rectifier Diode Small Signal Switching 100V 0.3A 4ns 2-Pin SOD-123 T/R
儒卓力:
**SI-DIODE 0,15A 100V SOD123 **
Win Source:
DIODE GEN PURP 100V 150MA SOD123
额定电压DC 75.0 V
额定电流 150 mA
电容 2.00 pF
额定功率 400 mW
输出电流 ≤150 mA
针脚数 2
正向电压 1.25V @150mA
极性 Standard
热阻 315℃/W RθJA
反向恢复时间 4 ns
正向电流 300 mA
最大正向浪涌电流(Ifsm) 2 A
正向电压Max 1.25V @150mA
正向电流Max 300 mA
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 400 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
高度 1.05 mm
封装 SOD-123
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAV16W-7-F Diodes 美台 | 当前型号 | 当前型号 |
BAV16WS-7-F 美台 | 类似代替 | BAV16W-7-F和BAV16WS-7-F的区别 |
BAV19W-7-F 美台 | 功能相似 | BAV16W-7-F和BAV19W-7-F的区别 |
BAV19W-TP 美微科 | 功能相似 | BAV16W-7-F和BAV19W-TP的区别 |
