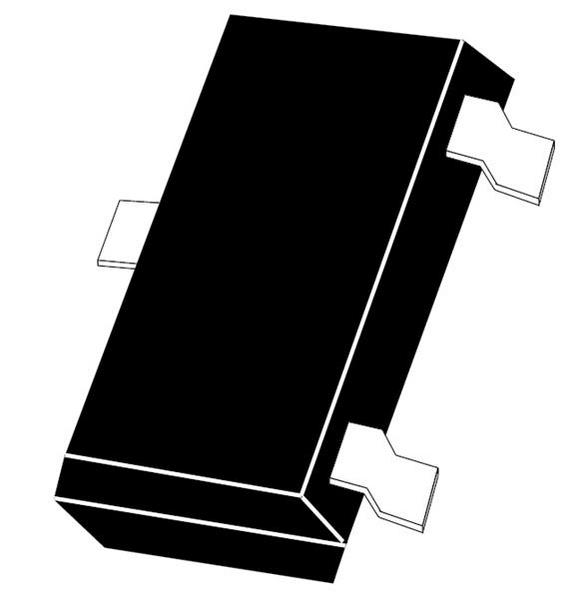

BAT54TA 二极管, 200mA 30V 5ns, 3针 SOT-23封装
Diode Schottky 30V 200mA DC Surface Mount SOT-23-3
得捷:
DIODE SCHOTTKY 30V 200MA SOT23-3
立创商城:
30V 200mA 1V@100mA
艾睿:
Switch from an AC voltage to a DC voltage using a Schottky diode BAT54TA rectifier from Diodes Zetex. Its maximum power dissipation is 200 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its peak non-repetitive surge current is 0.6 A, while its maximum continuous forward current is 0.2 A. It is made in a single configuration. This rectifier has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
Schottky Diode, 200mA, 30V, SOT23
Chip1Stop:
Diode Schottky 30V 0.2A Automotive 3-Pin SOT-23 T/R
Verical:
Rectifier Diode Schottky 30V 0.2A 5ns 3-Pin SOT-23 T/R
儒卓力:
**SCHOTTKY-DIODE 0,2A 30V SOT23 **
Win Source:
DIODE SCHOTTKY 30V 200MA SOT23-3
额定电压DC 30.0 V
额定电流 200 mA
电容 10.0 pF
额定功率 150 mW
输出电流 ≤200 mA
正向电压 400mV @10mA
极性 Standard
反向恢复时间 5 ns
正向电流 200 mA
正向电压Max 400mV @10mA
正向电流Max 200 mA
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温 125℃ Max
耗散功率Max 200 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
高度 0.98 mm
封装 SOT-23-3
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
BAT54TA Diodes 美台 | 当前型号 | 当前型号 |
BAT54-7-F 美台 | 类似代替 | BAT54TA和BAT54-7-F的区别 |
BAT54LT1G 安森美 | 功能相似 | BAT54TA和BAT54LT1G的区别 |
BAT54 飞兆/仙童 | 功能相似 | BAT54TA和BAT54的区别 |
